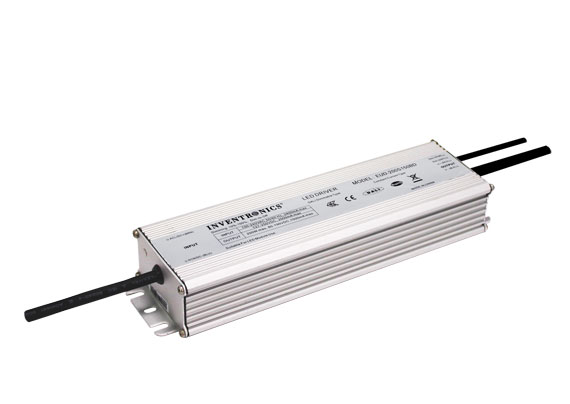

200 watt controls-ready 90-305Vac LED Driver

The EUD-200SxxxBD is Not Recommended for New Design

  • Programmable, Enabling Hundreds of Configurations
  • Controls-Ready:
    • Always-On Auxiliary Power: 12V, 200mA
    • Dim-to-Off with Low Standby Power
  • Dimming Controls:
    • 0-10V, PWM, Multiple Timers
  • High Level of Built-in Surge Protection:
    • 6kV DM, 10kV CM
  • Output Lumen Compensation
  • Thermal Sensing and Protection for LED Module
  • SELV Output
  • Class II, Double Insulation
  • Suitable for Built-in Use
  • 5 Year Warranty
Download Data Sheet
Order Here

Life Time

100,000 hours @ Case Temperature 60°C

Dimensions

Inches (L x W x H)
8.82 x 2.66 x 1.56

Millimeters (L x W x H)
224 x 67.5 x 39.5

Certifications

Full-Power Current RangeDefault Output CurrentInput Voltage RangeOutput Voltage RangeMax. Output PowerModel Number
700 – 1050 mA700 mA90 ~ 305 Vac
127 ~ 250 Vdc		120 – 285 Vdc200 WEUD-200S105BD
1050 – 1500 mA1400 mA80 – 190 VdcEUD-200S150BD
File Name
LED Driver Installation Instructions (Updated March 2015)
Download
LED Driver Installation Guideline (Updated September 2018)
Download
DALI Driver Programmer Manual Instruction (Updated November 2016)
Download
Programming Interface for DALI-Program (Updated May 2015)
Download
Programming Interface Device Driver Install First (Updated March 2015)
Download
Design-In Guide for Programmable Drivers (Updated September 2018)
Download
Programming Interface Installation Instructions (Updated 4-22-2015)
Download
Programming Interface Operating Instructions (Updated January 2016)
Download
Inventronics Constant Power Programmer Manual Instruction (Updated April 2018)
Download
