Hanghzou, China

Inventronics new programmable IP20 LED driver is equipped with numerous features as well as a more compact size. With a UL Class P certification, it offers OEMs the driver flexibility they need in their fixture designs and increases their competitive advantage. These low power drivers are ideal for indoor projects such as panel, troffers, downlights and other fixtures requiring a lower profile.

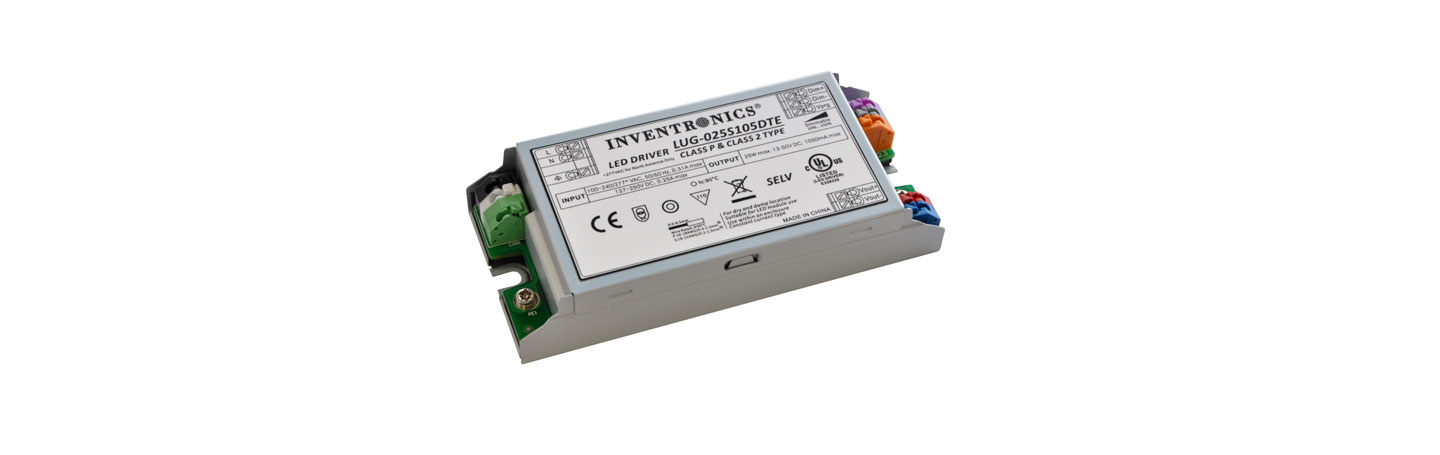

The new LUG-025S105DTE compliments the existing 12W-25W programmable driver portfolio and adds a new option with the isolated 0-10V dimming. Created with a tight tolerance in the low dimming range allows it to offer flicker-free, smooth dimming to 10% giving it a consistent light quality performance. Delivering the full power from 25W to 13W applications at almost any output current from 500 mA to 1050 mA makes them ideal for Class 2 applications and reduce the need to stock multiple drivers.

The LUG-025S105DTE operates over a 90-305Vac/127-300Vdc input voltage and approved to UL, FCC, CE and Class P allows it to be used in many countries around the world. They are highly reliable and have a calculated lifetime to be at least 85,000 hours when operating at 80% load with a case temperature of 75˚C.   Production quantities are available now.
