HUK Vertical High Bay LED Drivers
Hangzhou, China

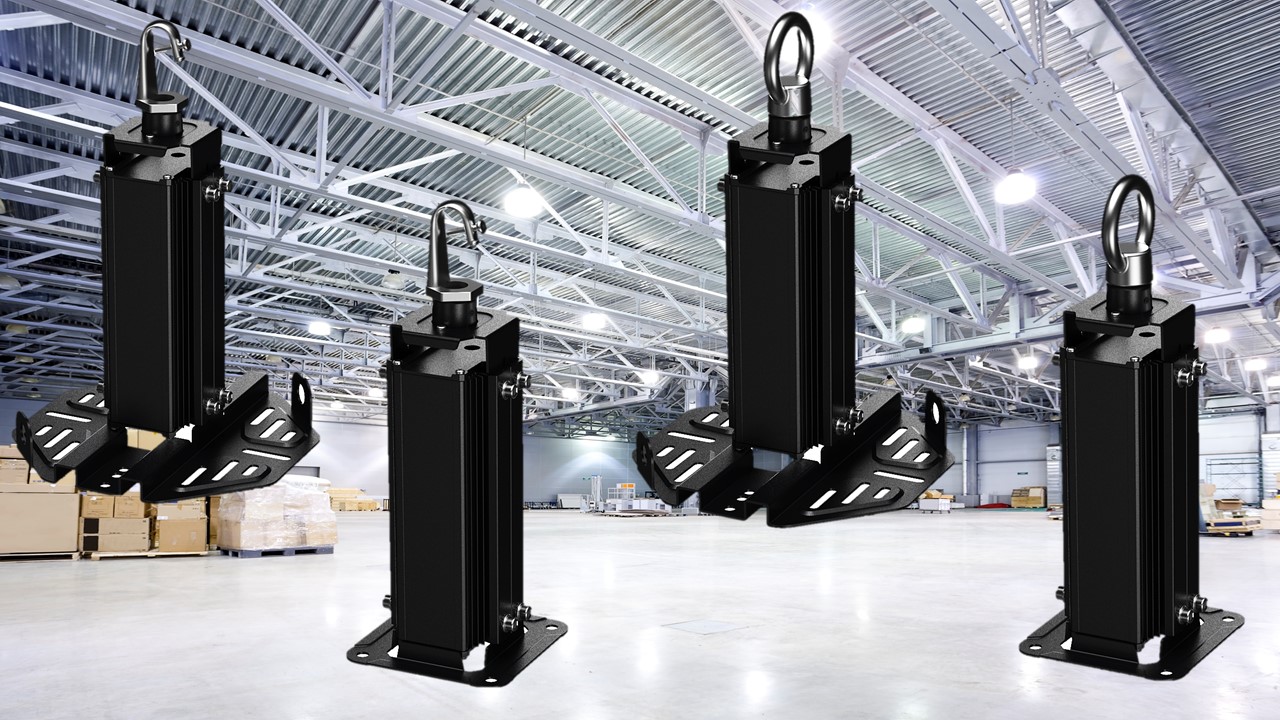

Inventronics has introduced an entirely new housing design to open the possibility of offering all LED driver families for high bay lighting applications. The HUK family provides a vertical installation with a patented, reinforced rust-proof metal housing and an IP67 rating that stands up to caustic environments.  Offering multiple installation options, our mounting accessories provide an easy assembly and installation. This includes the option to purchase the driver only for integration by the OEM or with brackets that have common mounting patterns facilitating use with widely available UFO style heatsinks and improving time to market.

The HUK family supports a wide range of applications with 4 power levels: 96W, 150W, 200W and 240W. They can be programmed for a wide range of output currents from 700 to 6700mA to provide design flexibility and lessen the number of products SKUs. Another advantage is their dimming controls. They provide isolated 0-10V and PWM dimming to help reduce energy consumption in areas when light is not needed.

Each HUK series are designed to be more resilient and highly reliable with a superior level of built-in surge protection at 4kV DM and 6kV CM, all-around protection which includes: over-voltage, over-temperature, and short-circuit protection as well as thermal sensing and protection for the LED module. The lifetime of these drivers is calculated to be at least 81,000-100,000 hours when operating at 80% load.

This new family is approved to UL, FCC, CE, KS, ENEC, PSE, CB, CCC, TUV and BIS certifications. Production quantities of the HUK-096SxxxDT/DV, HUK-150SxxxDT/DV, HUK-200SxxxDT/DV and HUK-240SxxxDT/DV are available now.
