Hanghzou, China

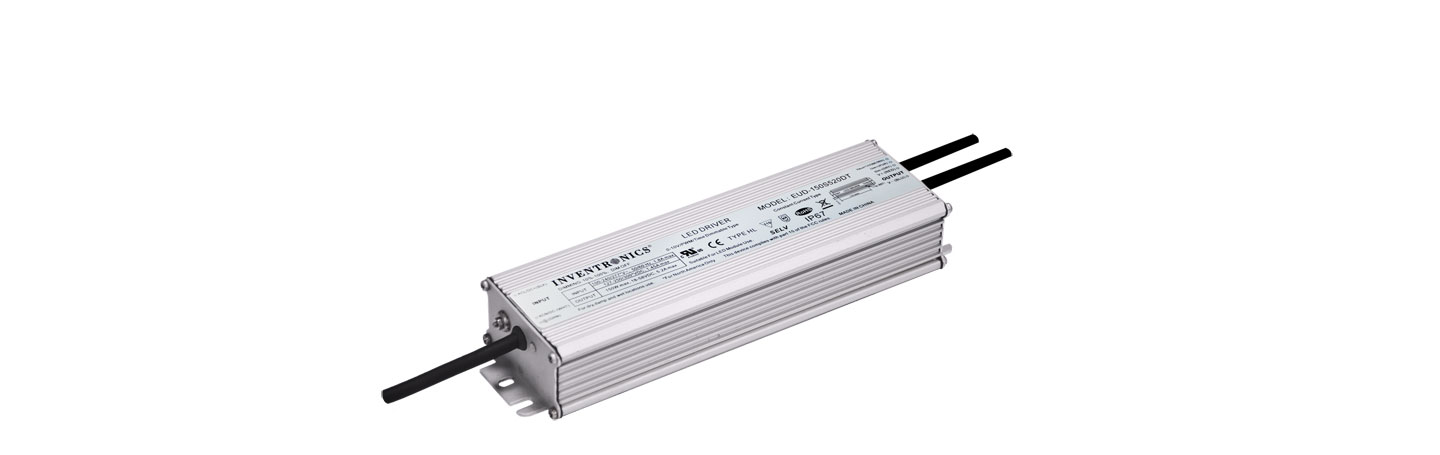

Inventronics has announced the release of a broad array of 150W programmable constant current LED drivers for lighting applications including high bay, roadway, high mast and arena lighting. The EUD-150SxxxDT/DV series can be programmed for 0-10V, PWM or time dimming, and has 6 constant-power models to deliver the full 150W at almost any output current between 650mA and 5200mA. Each model offers a full load efficiency of 90.5-92.0%, and it provides a 12V/200mA auxiliary output and dim-to-off with ≤ 1W standby power consumption, making it ideal for operation with a wide variety of sensors and controls for even greater energy savings. These products all operate over a 90-305Vac input range and provide excellent power factor correction (0.99 at 120V and 0.96 at 220V). The new series are approved to UL, CUL, FCC, ENEC, TUV, CE, CB and CCC standards.

The high efficiency and robust thermal design of these drivers enables the products to run cooler, significantly improving reliability and extending product life. The lifetime of these drivers is calculated to be 120,000 hours when operating at 80% load with a case temperature of 60°C.

To insure trouble-free operation, the EUD-150S product family also features over-voltage, over-temperature, and short-circuit protection. In addition, the rectangular, extruded-metal housing is IP67 rated allowing use both indoors and outdoors.

Production quantities of the EUD-150S series are available now.
