Hangzhou, China

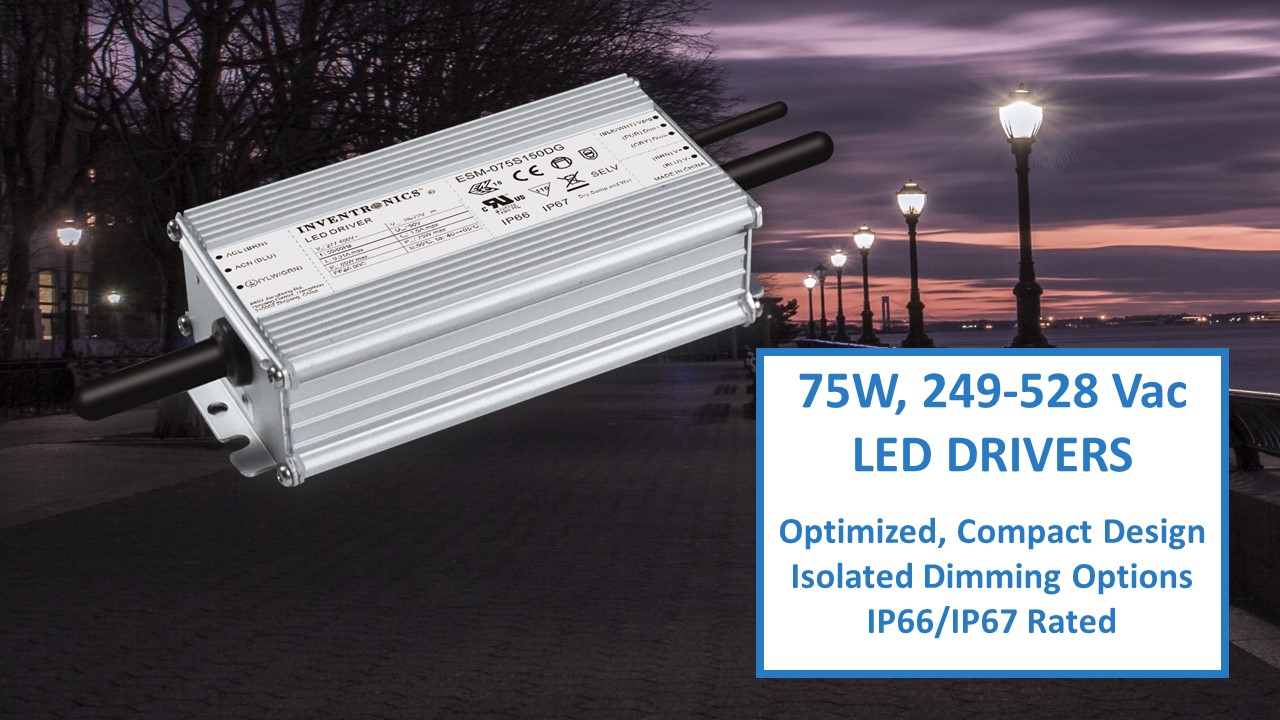

Inventronics expands their high input voltage, IP66/IP67 family to include models supplying up to 75W of power. They operate from 249-528 Vac and utilize the latest platform with an enhanced transformer design, optimized components and a more compact form factor. The ESM-075xxxDx are designed to provide OEMs design flexibility, superior levels of protection and reliable thermal management for U.S. industrial applications requiring 480Vac and Canadian applications required 347Vac.

The ESM-075SxxxDx offers three programmable models delivering the full 75W of power at a wide output current range from 700-2100mA. Their programmable interface and constant-power operation allow for in-house customization without the need of powering on the driver.   Their compact design gives OEMs added design flexibility and allows them to fit inside a multitude of luminaires.

For even more versatility the ESM-075SxxxDx family allows users to control the light output with several isolated dimming options such as 1-10V, 10V PWM and multiple timers, including self-adapt midnight. For a more uniform and consistent quality of light, they offer users the additional feature of output lumen compensation.

They are highly reliable and rugged drivers that deliver industry-leading surge protection of 6kV (differential mode) and 10kV (common mode) and utilize a proprietary encapsulation process. The ESM-075SxxxDx are specially designed to operate in demanding applications such as high bay, tunnel and roadway lighting.  They are also equipped with an end-of-life indicator and have a calculated lifetime up to 102,000 hours at a case temperature of 70°C and an efficiency up to 91.0%.

The ESM-075SxxxDx family consists of two series. The ESM-075SxxxDG are equipped with a global cable to reduce inventory SKUs and carrying costs associated with overstocking products. The ESM-075SxxxDT is ideal for the North American market as they provide the added convenience of UL Class P certification.  The ESM-DG models are approved to UL, CE, ENEC, FCC and CB standards, the ESM-DT models are approved to UL Class P, FCC and CE standards.  To receive a quote, please reach out to your local Inventronics sales representative or distributor.

Production quantities of the ESM-075SxxxDG and ESM-075SxxxDT are available now.
