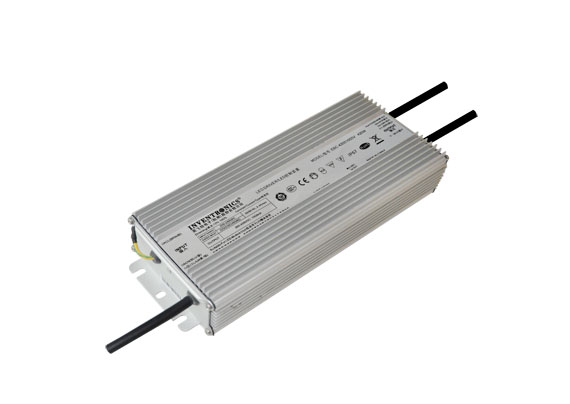

The EBC-420sxxxDV(SV) is Not Recommended for New Design. It has Limited Availability until the Last Buy Date of 7/31/2021.
We Recommend the EUD-480SxxxDV as a Replacement
- Dimming Controls:
- DV: 0-10V
- SV: Non-Dimming
- High Level Input Surge Protection:
- 6kV DM, 10kV CM
- Suitable for Independent Use
- 5 Year Warranty
Life Time
76,000 hours @ Case Temperature 60°C
Dimensions
Inches (L x W x H)
8.82 x 3.86 x 1.75
Millimeters (L x W x H)
224 x 98 x 44.5
Certifications
Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
---|---|---|---|---|
1050 mA |
176 ~ 305 Vac |
260 – 400 Vdc |
420 W |
EBC-420S105DV(SV) |
1400 mA | 195 – 300 Vdc | EBC-420S140DV(SV) |
