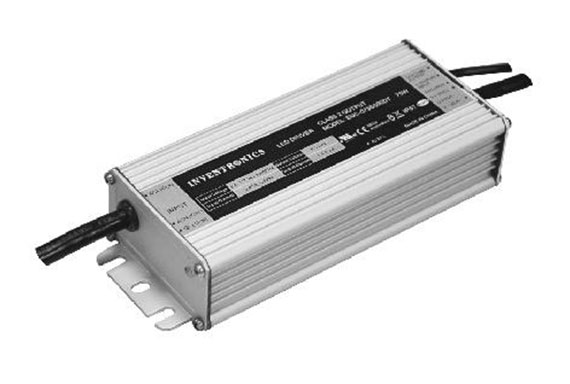

EUC-075SxxxDT(ST) has been discontinued
We Recommend the EUG-075SxxxDT, EUK-075SxxxDT and EUM-075SxxxDT as a Replacement
- Dimming Controls:
- DT: 0-10V
- ST: Non-Dimming
- Input Surge Protection:
- 4kV DM, 6kV CM
- TYPE HL, for use in a Class I, Division 2 Hazardous (Classified) Location
- 5 Year Warranty
Life Time
107,000 hours @ Case Temperature 60°C
Dimensions
Inches (L x W x H)
5.91 x 2.66 x 1.44
Millimeters (L x W x H)
150 x 67.5 x 36.5
Certifications
| Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|
| 350 mA |
90 ~ 305 Vac |
107 – 214 Vdc |
75 W |
EUC-075S035DT(ST) |
| 450 mA | 83 – 166 Vdc | EUC-075S045DT(ST) | ||
| 700 mA | 54 – 108 Vdc | EUC-075S070DT(ST) | ||
| 1050 mA | 36 – 72 Vdc | EUC-075S105DT(ST) | ||
| 1400 mA | 27 – 54 Vdc | EUC-075S140DT(ST) | ||
| 2100 mA | 18 – 36 Vdc | EUC-075S210DT(ST) | ||
| 2800 mA | 13 – 27 Vdc | EUC-075S280DT(ST) | ||
| 3150 mA | 12 – 24 Vdc | EUC-075S315DT(ST) | ||
| 3750 mA | 10 – 20 Vdc | EUC-075S375DT(ST) | ||
| 5000 mA | 7 – 15 Vdc | EUC-075S500DT(ST) |
|
