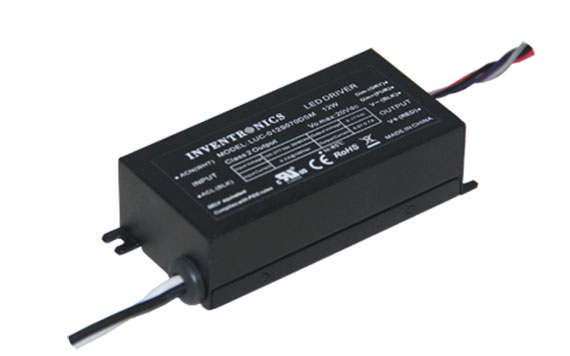

Constant current indoor LED drivers
  • Dimming Controls:
    • DSM: 0-10V (compatible with Passive Dimmers)
    • SSM: Non-Dimming
  • Metal Housing
  • Class 2 and SELV Output
  • 5 Year Warranty

Life Time

90,000 hours @ Case Temperature 60°C

Dimensions

Inches (L x W x H)
3.29 x 1.64 x 1.01

Millimeters (L x W x H)
83.5 x 41.5 x 25.6

Certifications

Output CurrentInput Voltage RangeOutput Voltage RangeMax. Output PowerModel Number
350 mA

90 ~ 305 Vac

 17 – 34 Vdc

12 W

LUC-012S035DSM(SSM)
500 mA 12 – 24 VdcLUC-012S050DSM(SSM)
700 mA9 – 17 VdcLUC-012S070DSM(SSM)
