Inventronics has expanded their EUM-DT family to include models with 75W and 100W power levels. The new models are designed with the latest, next generation platform and are equipped with an enhanced transformer design, optimized components that provide lower costs without sacrificing quality or performance and a new design methodology to support a warranty Tc of 80ºC. These new models are in addition to the recently released 150W, 200W and 240W models.

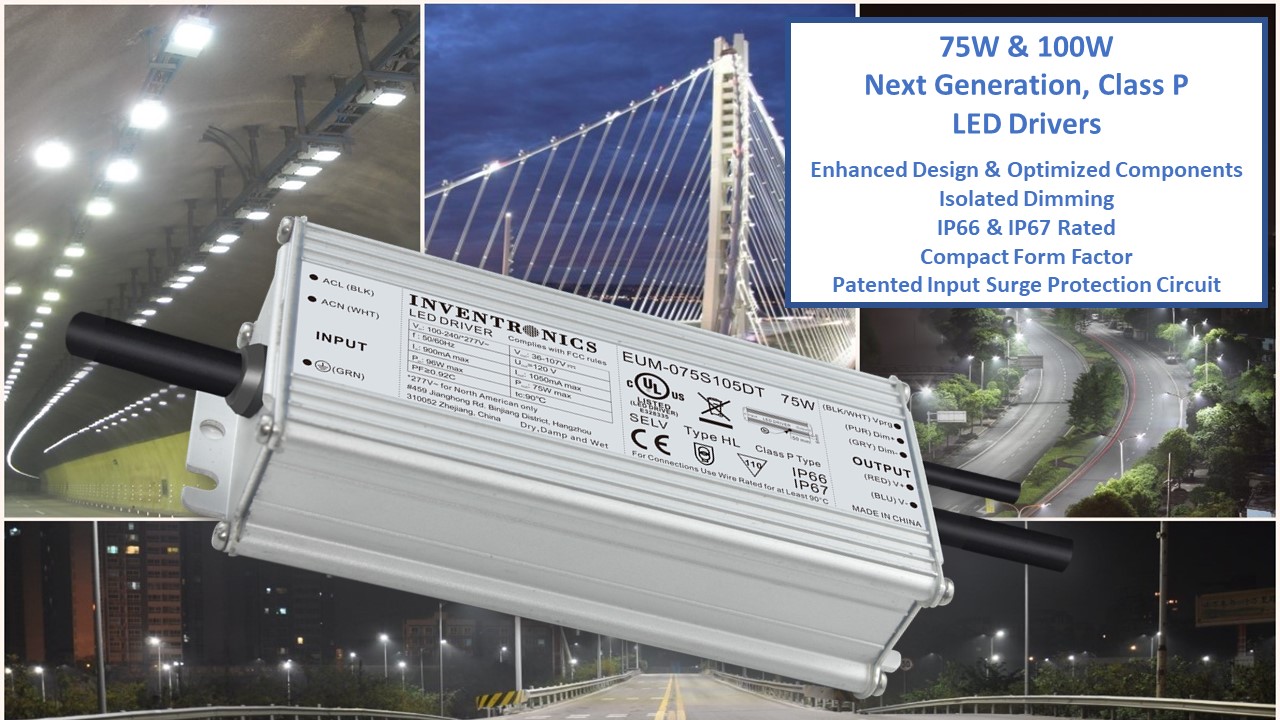

The EUM-075SxxxDT and EUM-100SxxxDT are programmable, IP66/IP67 LED drivers designed to provide OEMs extreme design flexibility. Their ultra-compact design is smaller than previous generation Inventronics drivers, allowing them to fit inside a multitude of luminaires. They are UL Class P Listed providing the freedom of substitution without new testing and bring your products to market faster.
Their programmable interface and constant-power operation allow for in-house customization which achieves optimal results and various current configurations without the need of powering on the driver. The EUM-DT family supplies improved safety with a wide range of isolated dimming options to remain compliant with all standards including the new UL May 2020 requirements. These dimming controls include isolated 1-5V, 1-10V, PWM and multiple timers.
Both the EUM-075SxxxDT and EUM-100SxxxDT series provide a multi-layer of protection which includes over-voltage, over-temperature, and short-circuit protection. Utilizing a new proprietary circuit, the drivers are still able to maintain an industry-leading surge protection of 6kV (differential mode) and 10kV (common mode) while passing typical hi-pot testing for luminaires without any secondary operation. The rugged, extruded-metal housing, which utilizes a proprietary encapsulation process, is IP66 and IP67 rated and specially designed to operate in demanding applications such as high bay, high mast and roadway lighting.
The EUM-075SxxxDT offers 3 constant-power, programmable series delivering 75W at output currents from 700mA to 2100mA and a calculated lifetime up to 100,000 hours at a case temperature of 70°C. The EUM-100SxxxDT offers 3 constant-power, programmable series delivering up to 100W at output currents from 700mA to 2800mA and a calculated lifetime up to 114,000 hours at a case temperature of 70°C.
Production quantities of the EUM-075SxxxDT and EUM-100SxxxDT are available now.
