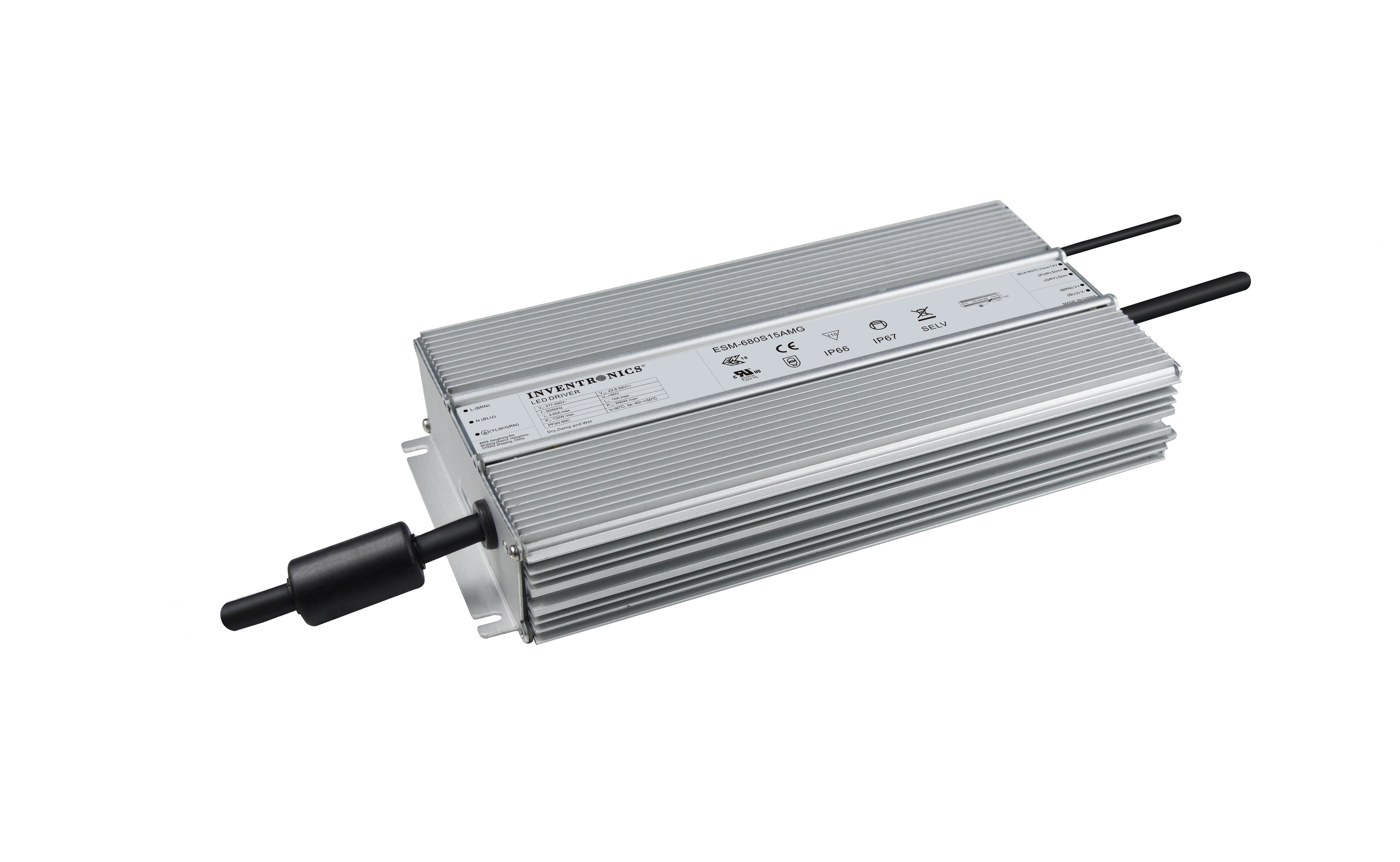

- Ultra High Efficiency (Up to 96%)
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with Programmability
- Isolated 0-10V/PWM/3-Timer-Modes Dimmable
- Adjustable Dimming Curve
- INV Digital Dimming, UART Based Communication Protocol
- Dim-to-Off with Low Standby Power
- Minimum Dimming Level with 5% or 10% Selectable
- Hold Time Adjustable
- Fade Time Adjustable
- Always-on Auxiliary Power: 12Vdc, 250mA
- Low Inrush Current
- Output Lumen Compensation
- End-of-Life Indicator
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: IUVP, IOVP, OVP, SCP, OTP
- IP66/IP67 and UL Dry/Damp/Wet Location
- TYPE HL, for Use in a Class I, Division 2 Hazardous
(Classified) Location - 5 Year Warranty
Life Time
102,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
9.85 x 5.32 x 1.82
Millimeters (L x W x H)
250 x 135 x 46
Certifications
| Adjustable Output Current Range(A) |
Full-Power Current Range(A) |
Default Output Current(A) |
Output Voltage Range(Vdc) |
Max. Output Power(W) |
Typical Efficiency |
Typical Power Factor |
Model Number(3)(5) | |
| 277Vac | 480Vac | |||||||
| 0.125-1.7 | 1.25-1.7 | 1.7 | 200-544 | 680 | 96.0% | 0.99 | 0.96 | ESM-680S170MG |
| 0.18-2.4 | 1.8-2.4 | 2.1 | 141.5-378 | 680 | 95.5% | 0.99 | 0.96 | ESM-680S240MG |
| 0.26-3.5 | 2.6-3.5 | 3.5 | 97.1-262 | 680 | 95.5% | 0.99 | 0.96 | ESM-680S350MG |
| 0.42-5.6 | 4.2-5.6 | 5.6 | 60.7-163 | 680 | 95.5% | 0.99 | 0.96 | ESM-680S560MG |
| 0.63-8.4 | 6.3-8.4 | 8.4 | 40.4-108 | 680 | 95.5% | 0.99 | 0.96 | ESM-680S840MG |
| 1.26-15.0 | 12.6-15.0 | 15.0 | 22.6-54 | 680 | 94.5% | 0.99 | 0.96 | ESM-680S15AMG |
|
File Name
|
|---|
|
LED Driver Installation Instructions (Updated September 2018)
|
|
Programming Interface Device Driver Install First (Updated March 2015)
|
|
Design-in Guide for Programming Drivers (Updated September 2018)
|
|
Inventronics Constant Power Programmer Manual Instruction (Updated December 2020)
|
