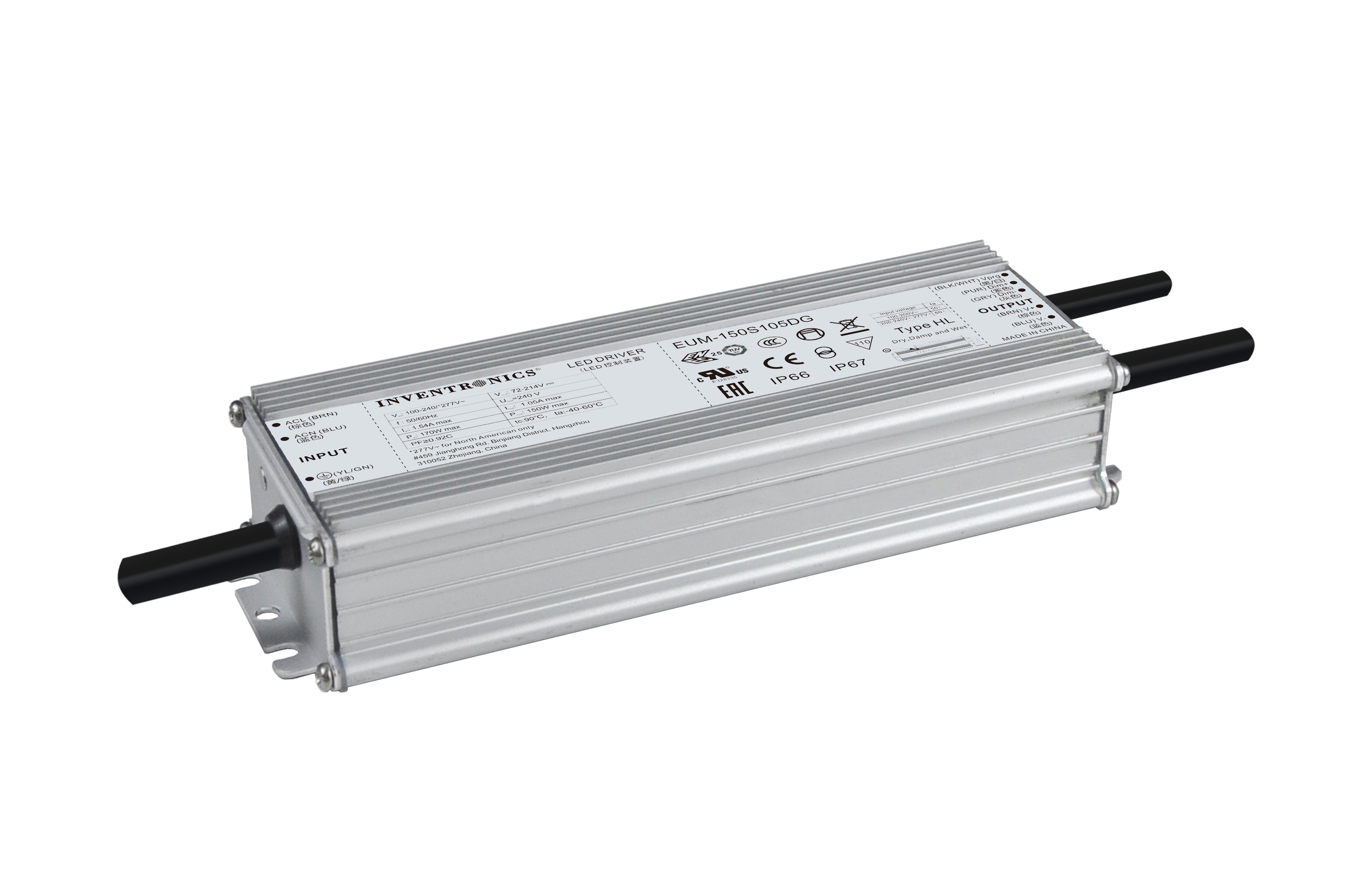

EUM-150 Dx Series
  • Next Generation Platform
  • Programmable, Without the need of Powering on the Driver
  • Isolated Dimming Controls:
    • 1-5V, 1-10V, PWM, Multiple Timers
  • High Level of Built-in Surge Protection:
    • 6kV DM, 10kV CM
  • Simplified Design for Easier Hi-Pot Testing
  • Output Lumen Compensation
  • SELV Output Models Available
  • IP66 and IP67 and UL Dry, Damp, Wet Location
  • UL Class P
  • TYPE HL, for use in a Class I, Division 2 Hazardous
  • 5 Year Warranty

Life Time

106,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
6.34 x 2.36 x 1.44

Millimeters (L x W x H)
161 x 60 x 36.5

Certifications

Full-Power Current Range Default Output Current Input Voltage Range Output Voltage Range Max. Output Power Model Number
700 – 1050 mA 700 mA 90 ~ 305 Vac
127 – 300 Vdc
72 – 214 Vdc 150 W EUM-150S105DT
1050 – 1500 mA 1050 mA 50 – 143 Vdc EUM-150S150DT
1400 – 2100 mA 1400 mA 36 – 107 Vdc EUM-150S210DT
2800 – 4200 mA 3150 mA 18 – 54 Vdc EUM-150S420DT

File Name
LED Driver Installation Instructions (Updated March 2015)
Programming Interface Device Driver Install First (Updated March 2015)
Design-in Guide for Programming Drivers (updated September 2018)
Programming Interface Installation Instructions (Updated April 2015)
Programming Interface Operating Instructions (Updated January 2016)
Inventronics Constant Power Programmer Manual Instruction (Updated April 2018)
