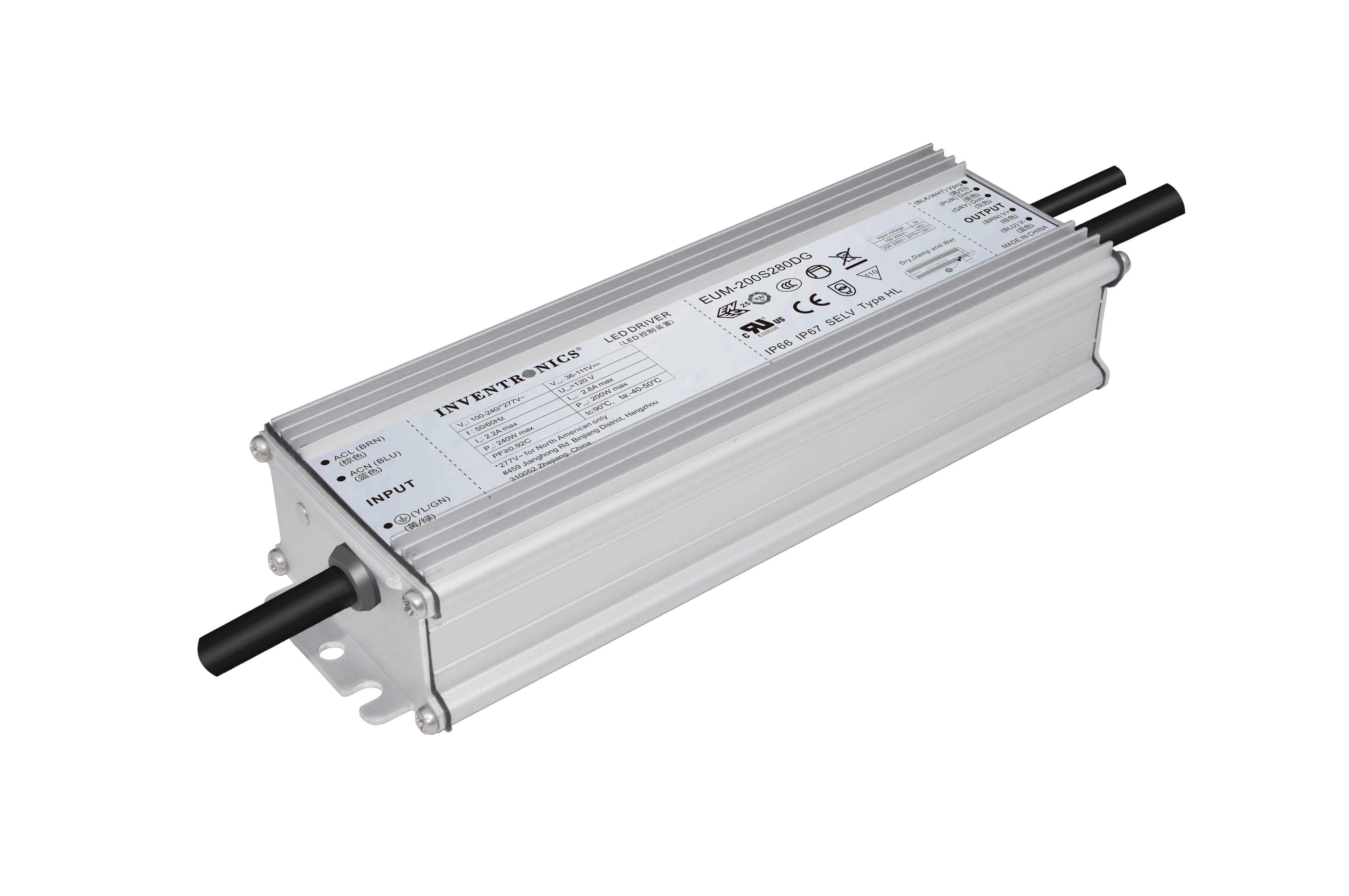

- Compact Metal Case with Excellent Thermal Performance
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with Programmability
- Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
- Output Lumen Compensation
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: OVP, SCP, OTP
- IP66/IP67 and UL Dry/Damp/Wet Location
- SELV Output
- TYPE HL, for Use in a Class I, Division 2 Hazardous
(Classified) Location - 5 Year Warranty
Life Time
100,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
6.73 × 2.36 × 1.44
Millimeters (L x W x H)
171 × 60 × 36.5
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 53) – 700 mA | 530 mA | 90 ~ 305 Vac 127 – 300 Vdc |
142 – 378 Vdc | 200 W | EUM-200S070DG |
| 700 – 1050 mA | 700 mA | 95 – 286 Vdc | EUM-200S105DG | ||
| 1050 – 1500 mA | 1050 mA | 67 – 190 Vdc | EUM-200S150DG | ||
| 1800 – 2800 mA | 2100 mA | 36 – 111 Vdc | EUM-200S280DG | ||
| 3500 – 5600 mA | 4200 mA | 18 – 57 Vdc | EUM-200S560DG | ||
| Note: To order BIS approved models, please use suffix “DB” in place of “DG” (Ex: EUM-200S105DB) | |||||
|
