- Programmable, Without the need of Powering on the Driver
- New Global Cable Design to Reduce SKUs (with UL)
- Isolated Dimming Controls:
- 1-5V, 1-10V, PWM, Multiple Timers
- Optimized, More Compact Form Factor
- High Level of Built-in Surge Protection:
- 6kV DM, 10kV CM
- Simplified Design for Easier Hi-Pot Testing
- Output Lumen Compensation
- SELV Output Models Available
- IP66 and IP67 and UL Dry, Damp, Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous

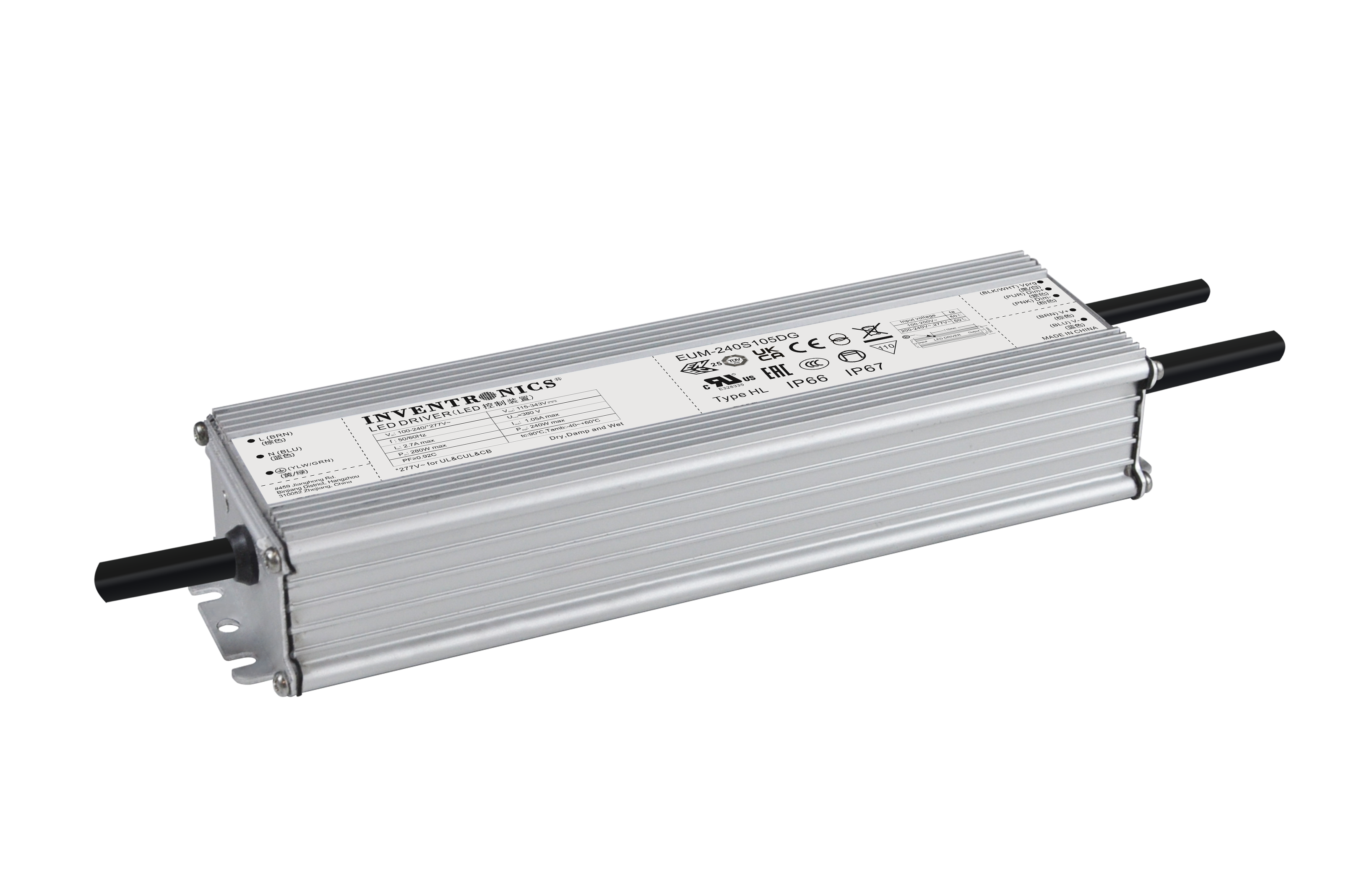

- EUM-240SxxxDG Models: Global Cable to Reduce Inventory SKUs
- EUM-240SxxxDB Models: BIS Certified
- 5 Year Warranty
Life Time
100,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
7.91 x 2.36 x 1.52
Millimeters (L x W x H)
201 x 60 x 38.5
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 700 – 1050 mA | 700 mA | 90 ~ 305 Vac 127 – 300 Vdc | 115 – 343 Vdc | 240 W | EUM-240S105DG |
| 1050 – 1500 mA | 1050 mA | 80 – 229 Vdc | EUM-240S150DG | ||

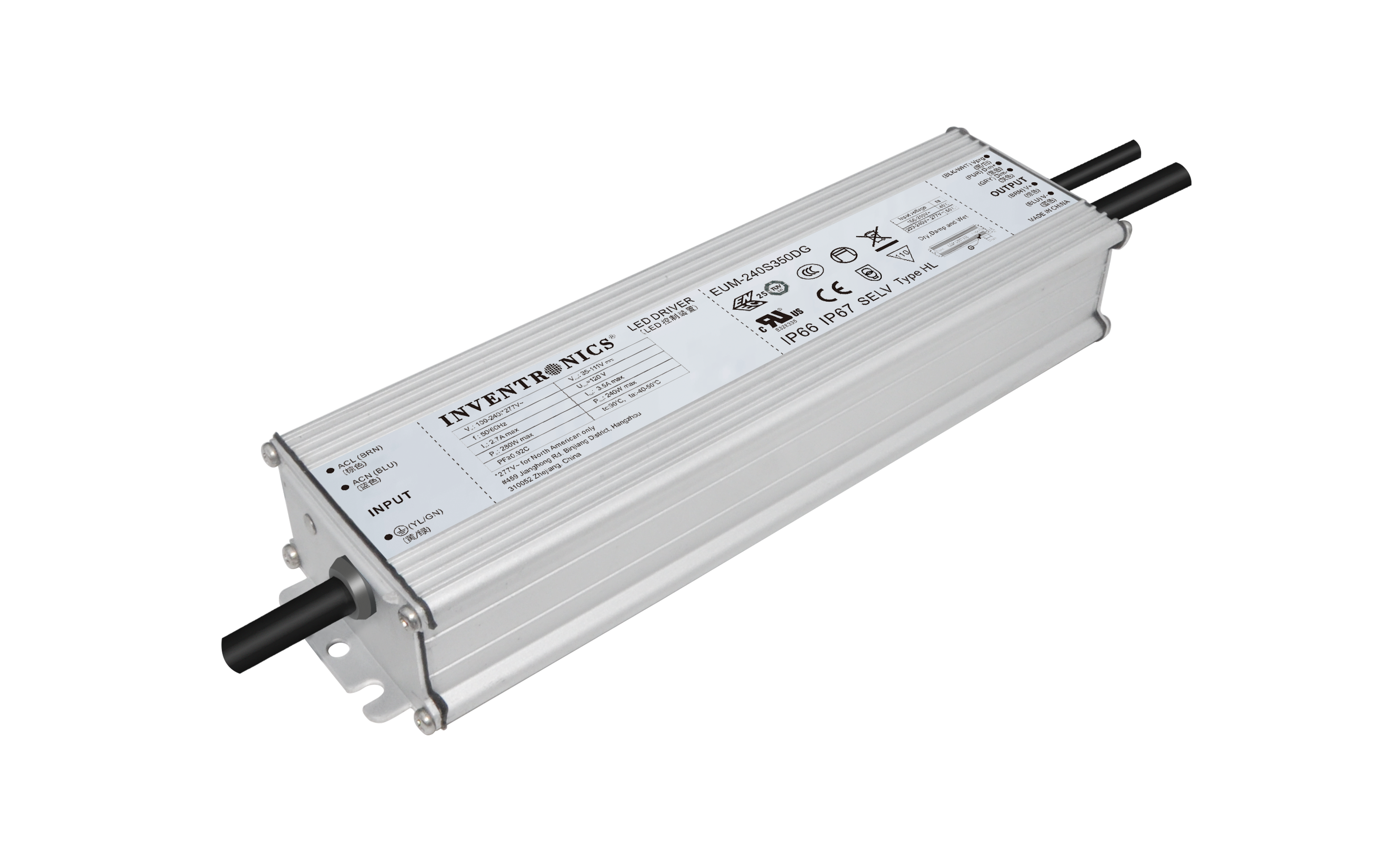

| 2150 – 3500 mA | 2150 mA | 35 – 111 Vdc | EUM-240S350DG | ||
| 4200 – 6700 mA | 4900 mA | 18 – 57 Vdc | EUM-240S670DG | ||
| Note: To order BIS approved models, please use suffix “DB” in place of “DG” (Ex: EUM-240S105DB) | |||||
File Name |
|---|
LED Driver Installation Instructions (Updated March 2015) |
Programming Interface Device Driver Install First (Updated March 2015) |
Design-in Guide for Programming Drivers (Updated September 2018) |
Programming Interface Installation Instructions (Updated April 2015) |
Programming Interface Operating Instructions (Updated January 2016) |
Inventronics Constant Power Programmer Manual Instruction (Updated April 2018) |
