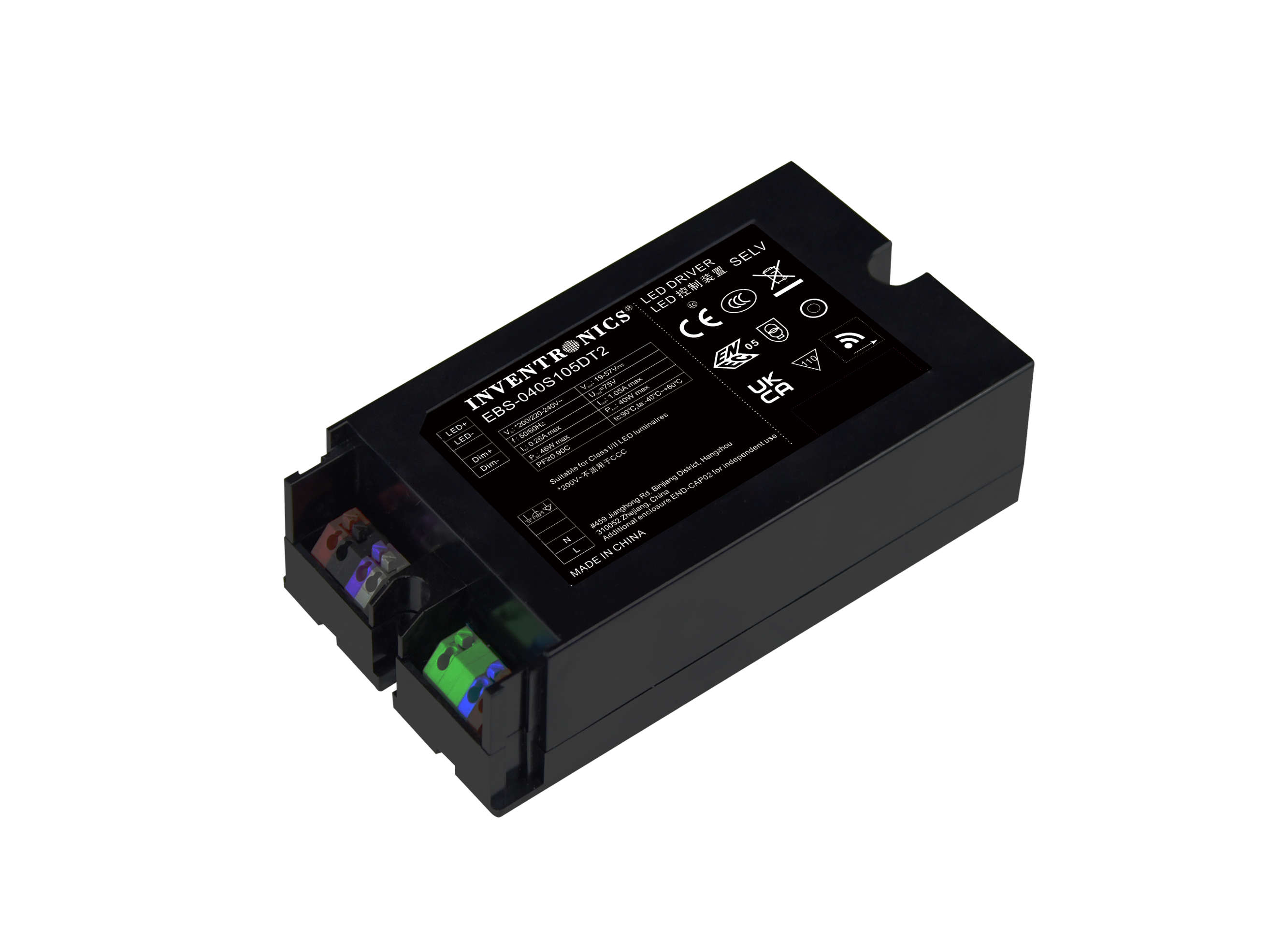

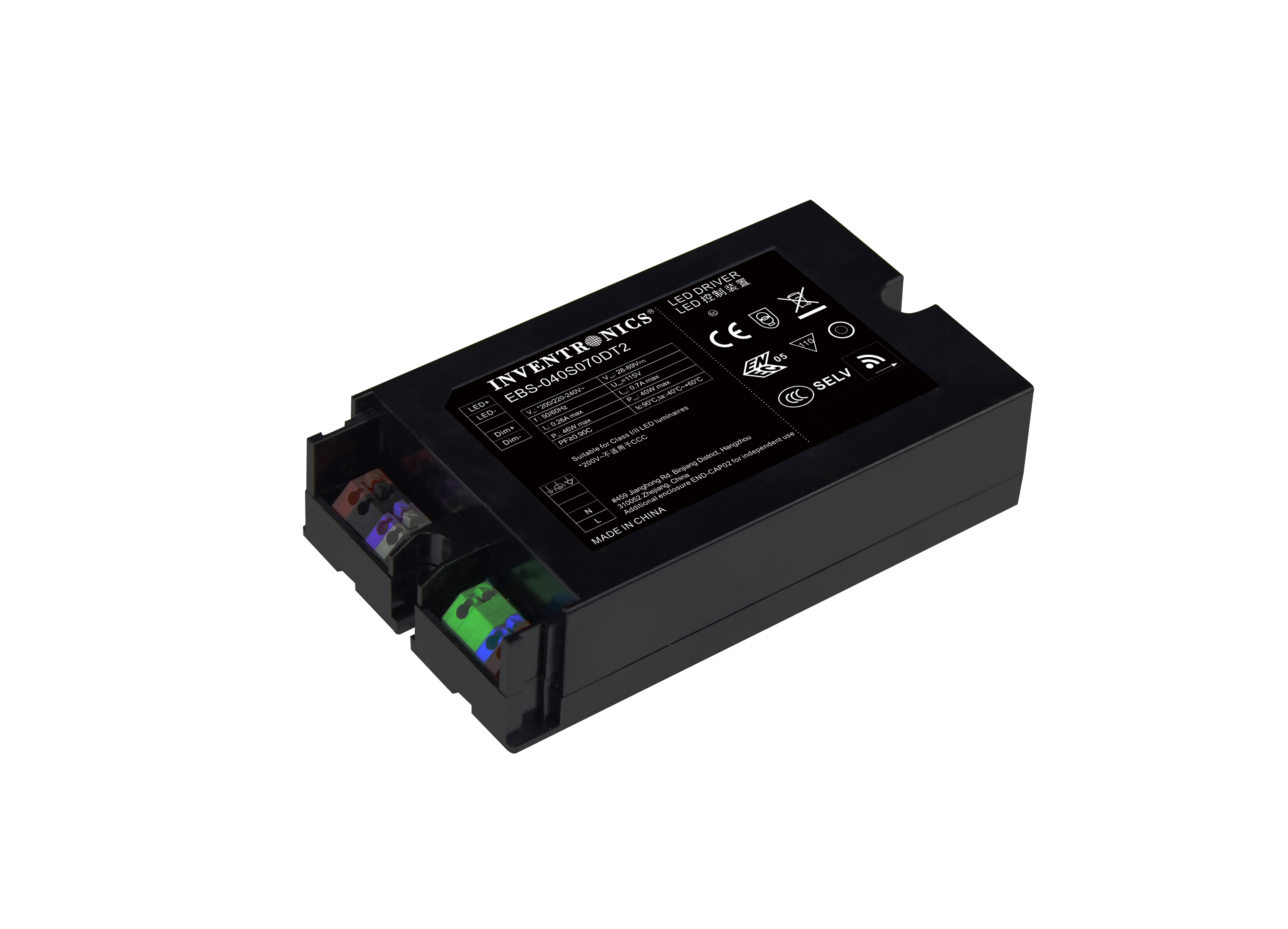

EBS-040SxxxDT2
  • Constant-Power at a Wide Output Current Range
  • Wireless Programming via Near Field Communication (NFC)
  • Dimming Controls:
    • 1-10V, Multiple Timers
  • High Level Input Surge Protection:
    • 6kV DM, 10kV CM
  • Output Lumen Compensation
  • End-of-Life Indicator
  • IP20 Design and Suitable for Outdoor Applications in Luminaires with IP>54
  • Suitable for Luminaires with Protection Class I and II
  • Complies with Zhaga Interface Specification Book 13
  • 8 Year Warranty

Life Time

104,000 hours @ Case Temperature 75°C

Dimensions

Inches (L x W x H)
5.24 x 3.03 x 1.30

Millimeters (L x W x H)
133 x 77 x 33

Certifications

Full-Power Current RangeDefault Output CurrentInput Voltage RangeOutput Voltage RangeMax. Output PowerModel Number
300 – 450 mA450 mA176 ~ 305 Vac
171 – 275 Vdc
44 – 133 Vdc40 WEBS-040S045DT2
450 – 700 mA700 mA28 – 89 VdcEBS-040S070DT2
700 – 1050 mA1050 mA19 – 57 VdcEBS-040S105DT2
File Name
LED Driver Installation Guidelines (Updated September 2018)
Programming Interface Device Driver Install First (Updated March 2015)
Design-In Guide for Programmable Drivers (Updated September 2018)
