- Programmable Dimming Functionalities:
- 0-10V, PWM, Multiple Timers
- Controls-Ready:
- Dim-to-Off with Low Standby Power
- Always-On Auxiliary Power 12V/200mA
- Input Surge Protection:
- 4kV DM, 6 kV CM
- SELV Output
- IP67 and UL Dry/Damp/Wet Location
- TYPE HL, for use in Class I, Division 2 Hazardous (Classified) Location
- 5 Year Warranty
Life Time
120,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
9.21 x 3.86 x 1.75
Millimeters (L x W x H)
234 x 98 x 44.8
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 1050 – 1500 mA | 1400 mA |
249 ~ 528 Vac |
107 – 305 Vdc |
320 W |

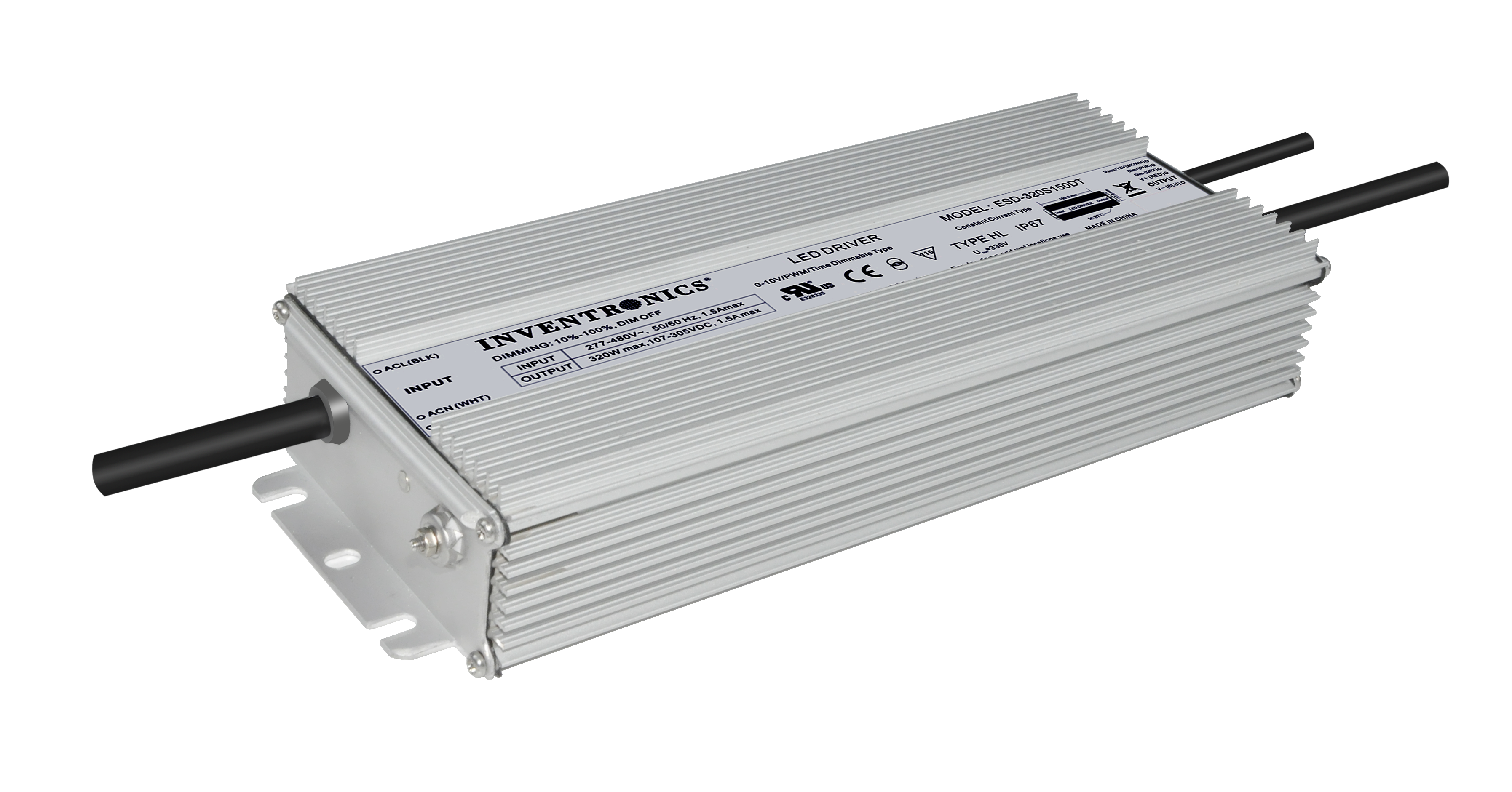

ESD-320S150DT |
| 1540 – 2200 mA | 2100 mA | 73 – 208 Vdc | ESD-320S220DT | ||
| 2170 – 3100 mA | 2800 mA | 52 – 148 Vdc | ESD-320S310DT | ||
| 3080 – 4400 mA | 4200 mA | 37 – 104 Vdc | ESD-320S440DT | ||
| 4340 – 6200 mA | 4900 mA | 26 – 74 Vdc | ESD-320S620DT |
|
