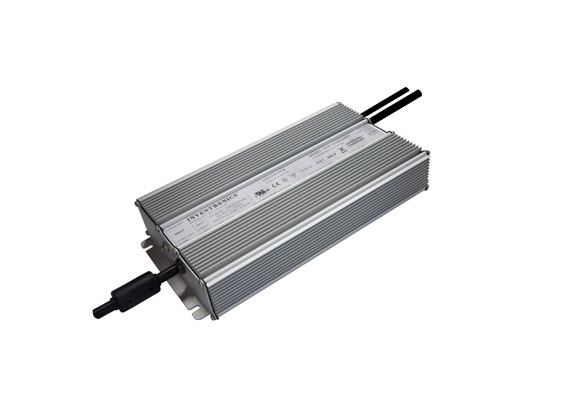

Not Recommended for New Design
We Recommend the ESM-680SxxxMT as a Replacement
- Programmable Dimming Functionalities:
- 0-10V, PWM, Multiple Timers
- Controls-Ready:
- Dim-to-Off with Low Standby Power
- Always-On Auxiliary Power 12V/200mA
- Input Surge Protection:
- 6kV DM, 10kV CM
- Thermal Sensing and Protection for LED Module
- Output Lumen Compensation
- SELV Output
- Suitable for Independent Use
- 5 Year Warranty
Life Time
101,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
9.84 x 5.67 x 1.91
Millimeters (L x W x H)
250 x 144 x 48.5
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 1360 – 1700 mA | 1700 mA |
249 ~ 528 Vac |
176 – 441 Vdc |
600 W |
ESD-600S170DT |
| 1680 – 2100 mA | 2100 mA | 143 – 357 Vdc | ESD-600S210DT | ||
| 2240 – 2800 mA | 2800 mA | 108 – 268 Vdc | ESD-600S280DT | ||
| 3360 – 4200 mA | 4200 mA | 72 – 178 Vdc | ESD-600S420DT | ||
| 4480 – 5600 mA | 5600 mA | 54 – 134 Vdc | ESD-600S560DT | ||
| 5920 – 7400 mA | 7000 mA | 41 – 101 Vdc | ESD-600S740DT | ||
| 7840 – 9800 mA | 9800 mA | 31 – 76 Vdc | ESD-600S980DT | ||
| 10000 – 12500 mA | 12500 mA | 24 – 60 Vdc | ESD-600S12ADT |
|
