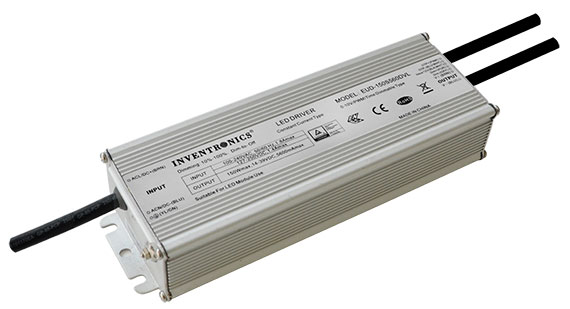

Long-Life Controls Ready LED Drivers
  • Innovative Design:
    • No Electrolytic Capacitors
    • Ultra-Long Lifetime
    • Programmable, Enabling Hundreds of Configurations
  • Controls-Ready:
    • Always-ON Auxiliary Power: 12V, 200mA
    • Dim-to-Off with Standby Power ≤ 0.5W
  • Dimming Controls:
    • 0-10V, PWM, Multiple Timers
  • Input Surge Protection:
    • 6kV DM, 10kV CM
  • Output Lumen Compensation
  • Thermal Sensing and Protection for the LED Module
  • SELV Output
  • 10 Year Warranty

Life Time

100,000 hours @ Case Temperature 85°C

Dimensions

Inches (L x W x H)
7.41 x 2.66 x 1.56

Millimeters (L x W x H)
188 x 67.5 x 39.7

Certifications

Full-Power Current RangeDefault Output CurrentInput Voltage RangeOutput Voltage RangeMax. Output PowerModel Number
450 – 700 mA530 mA

90 ~ 305 Vac
127 – 250 Vdc

117 – 333 Vdc

150 W

EUD-150S070DVL
700 – 1050 mA700 mA75 – 214 VdcEUD-150S105DVL
1400 – 2100 mA1400 mA38 – 107 VdcEUD-150S210DVL
2450 – 3500 mA3150 mA 22 – 61 VdcEUD-150S350DVL
3850 – 5600 mA4200 mA 14 – 39 VdcEUD-150S560DVL
File Name
LED Driver Installation Instructions (Updated Marc 2015)
LED Driver Installation Guideline (Updated September 2018)
Programming Interface Device Driver Install First (Updated March 2015)
Design-in Guide for Programming Drivers (Updated September 2018)
Programming Interface Installation Instructions (Updated April 2015)
Programming Interface Operating Instructions (Updated January 2016)
Inventronics Constant Power Programmer Manual Instruction (Updated April 2018)
