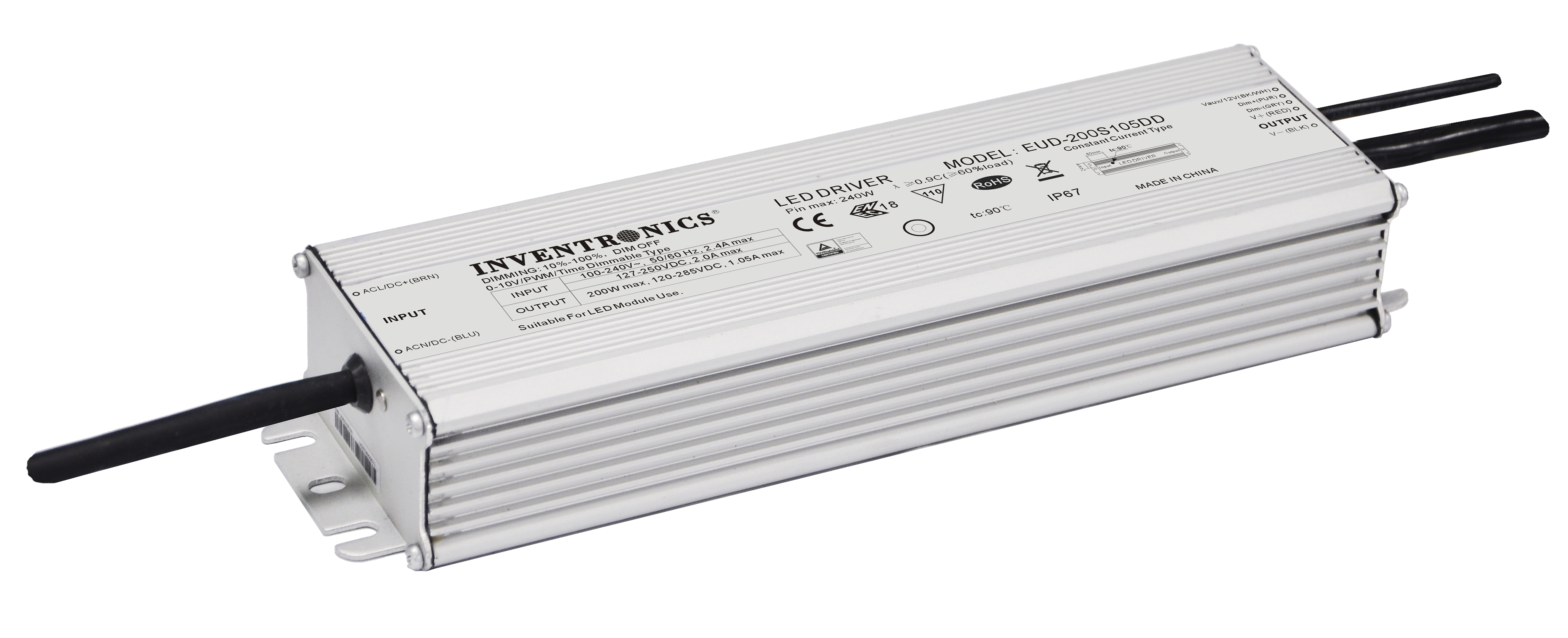

The EUD-200SxxxDD is Not Recommended for New Design

  • Programmable, Enabling Hundreds of Configurations
  • Controls-Ready:
    • Always-On Auxiliary Power: 12V, 200mA
    • Dim-to-Off with Low Standby Power
  • Dimming Controls:
    • 0-10V, PWM, Multiple Timers
  • High Level of Built-in Surge Protection:
    • 6kV DM, 10kV CM
  • Output Lumen Compensation
  • Thermal Sensing and Protection for LED Module
  • SELV Output
  • Class II, Double Insulation
  • Suitable for Built-in Use
  • 5 Year Warranty

Life Time

100,000 hours @ Case Temperature 60°C

Dimensions

Inches (L x W x H)
8.82 x 2.66 x 1.56

Millimeters (L x W x H)
224 x 67.5 x 39.5

Certifications

Full-Power Current RangeDefault Output CurrentInput Voltage RangeOutput Voltage RangeMax. Output PowerModel Number
700 – 1050 mA700 mA90 ~ 305 Vac
127 ~ 250 Vdc
120 – 285 Vdc200 WEUD-200S105DD
1050 – 1500 mA1400 mA80 – 190 VdcEUD-200S150DD
File Name
LED Driver Installation Instructions (Updated March 2015)
LED Driver Installation Guideline (Updated September 2018)
Programming Interface Device Driver-Install First (Updated March 2015)
Programming Interface Installation Instructions (Updated April 2015)
Programming Interface Operating Instructions (Updated January 2016)
Design-in-Guide for Programmable Drivers (Updated September 2018)
Constant-Power Programmer Manual Instructions (Updated April 2018)
