- Programmable, Enabling Hundreds of Configurations
- Controls-Ready:
- Always-On Auxiliary Power: 12V, 200mA
- Dim-to-Off with Low Standby Power
- Dimming Controls:
- Isolated 0-10V, PWM, Multiple Timers
- Digital Dimming
- High Level of Built-in Surge Protection:
- 6kV DM, 10kV CM
- Output Lumen Compensation
- Thermal Sensing and Protection for LED Module
- SELV Output
- 7 Year Warranty
Life Time
90,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
9.84 x 5.67 x 1.91
Millimeters (L x W x H)
250 x 144 x 48.5
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 1100 – 1400 mA | 1400 mA |
90 ~ 305 Vac |
214 – 545 Vdc |
600 W |
EUD-600S140DV |
| 1360 – 1700 mA | 1700 mA | 176 – 441 Vdc | EUD-600S170DV | ||
| 1680 – 2100 mA | 2100 mA | 143 – 357 Vdc | EUD-600S210DV | ||
| 2240 – 2800 mA | 2800 mA | 108 – 268 Vdc | EUD-600S280DV | ||
| 3360 – 4200 mA | 4200 mA | 72 – 178 Vdc | EUD-600S420DV | ||
| 4480 – 5600 mA | 5600 mA | 54 – 134 Vdc | EUD-600S560DV | ||
| 5920 – 7400 mA | 7000 mA | 41 – 101 Vdc | EUD-600S740DV | ||

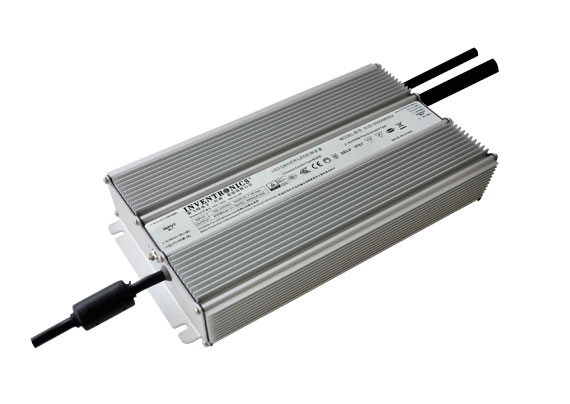

| 7840 – 9800 mA | 9800 mA | 31 – 76 Vdc | EUD-600S980DV | ||
| 10000 – 12500 mA | 12500 mA | 24 – 60 Vdc | EUD-600S12ADV |
|
File Name
|
|---|
|
LED Driver Installation Instructions (Updated March 2015)
|
|
LED Driver Installation Guideline (Updated September 2018)
|
|
Programming Interface Device Driver Install First (Updated March 2015)
|
|
Design-In Guide for Programmable Drivers (Updated September 2018)
|
|
Programming Interface Installation Instructions (Updated April 2015)
|
|
Programming Interface Operating Instructions (Updated January 2016)
|
|
Inventronics Constant Power Programmer Manual Instruction (Updated April 2018)
|
