- Programmable, Without the need of Powering on the Driver
- New Global Cable Design to Reduce SKUs (with UL)
- Isolated Dimming Controls:
- 1-5V, 1-10V, PWM, Multiple Timers
- High Level of Built-in Surge Protection:
- 6kV DM, 10kV CM
- Simplified Design for Easier Hi-Pot Testing
- Output Lumen Compensation
- SELV Output Models Available
- IP66 and IP67 and UL Dry, Damp, Wet Location
- TYPE HL, for use in a Class I, Division 2 Hazardous

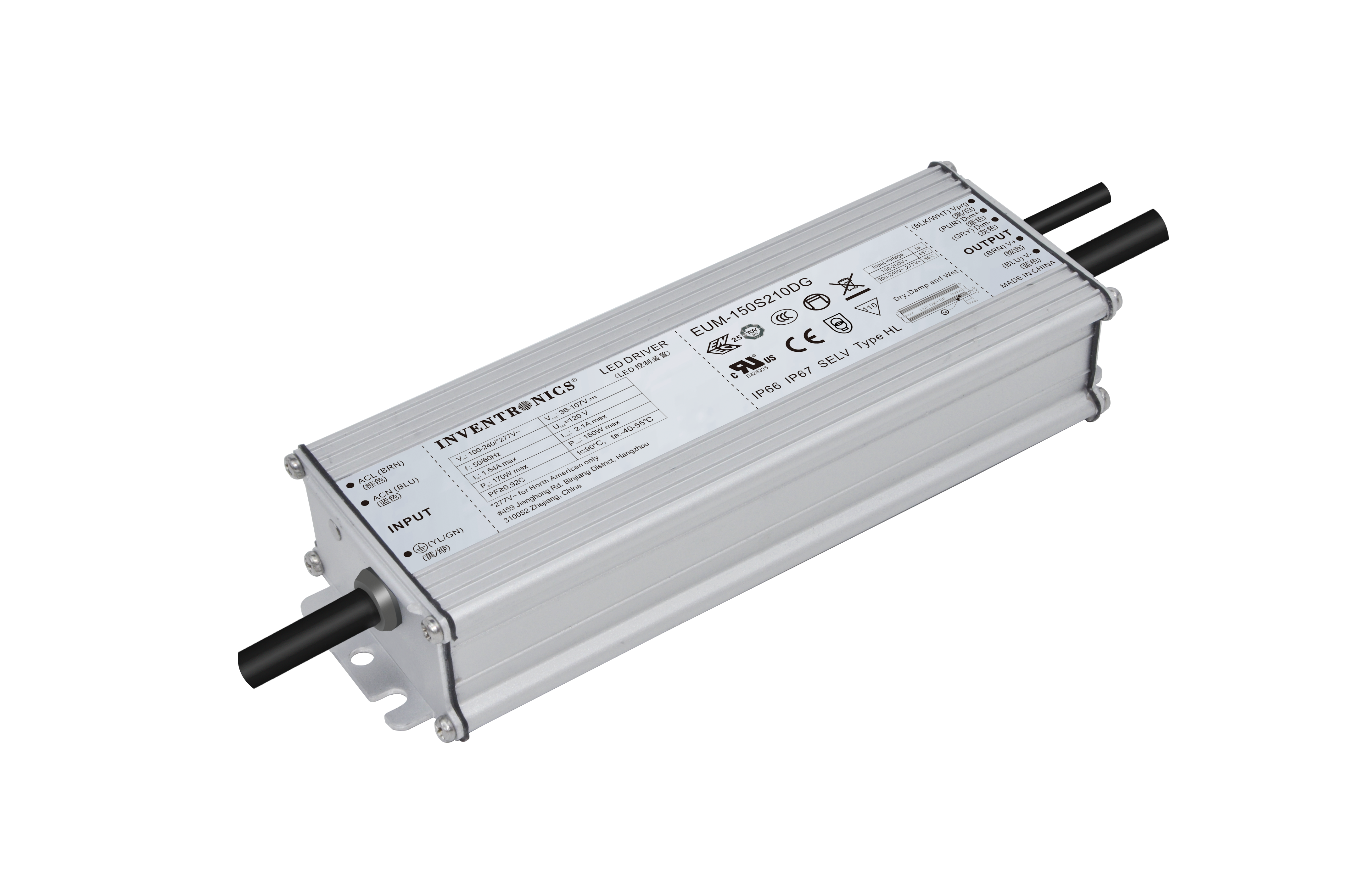

- EUM-150SxxxDG Models: Global Cable to Reduce Inventory SKUs
- EUM-150SxxxDB Models: BIS Certified
- 5 Year Warranty
Life Time
106,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
6.34 x 2.36 x 1.44
Millimeters (L x W x H)
161 x 60 x 36.5
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 530 – 700 mA | 530 mA | 90 ~ 305 Vac 127 – 300 Vdc | 107 – 284 Vdc | 150 W | EUM-150S070DG |
| 700 – 1050 mA | 700 mA | 72 – 214 Vdc | EUM-150S105DG | ||
| 1050 – 1500 mA | 1050 mA | 50 – 143 Vdc | EUM-150S150DG | ||
| 1400 – 2100 mA | 1400 mA | 36 – 107 Vdc | EUM-150S210DG | ||
| 2800 – 4200 mA | 3150 mA | 18 – 54 Vdc | EUM-150S420DG | ||
| Note: To order BIS approved models, please use suffix “DB” in place of “DG” (Ex: EUM-150S105DB) EUM-150S070DG is certified to ENEC, CE, CB and CCC. | |||||
File Name |
|---|
LED Driver Installation Instructions (Updated March 2015) |
Programming Interface Device Driver Install First (Updated March 2015) |
Design-in Guide for Programming Drivers (Updated September 2018) |
Programming Interface Installation Instructions (Updated April 2015) |
Programming Interface Operating Instructions (Updated January 2016) |
Inventronics Constant Power Programmer Manual Instruction (Updated April 2018) |
