- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with Programmability
- Isolated 1-8V/10V PWM/3-Timer-Modes Dimmable
- Adjustable Dimming Curve
- Override Dimming
- Output Lumen Compensation
- End-of-Life Indicator
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: OVP, SCP, OTP
- IP66 and UL Dry/Damp Location
- TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
- 5 Year Warranty
Life Time
109,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
6.73 × 2.36 × 1.48
Millimeters (L x W x H)
171 × 60 × 37.6
Certifications
| Adjustable Output Current Range (mA) | Full-Power Current Range (mA) | Default Output Current (mA) | Output Voltage Range (Vdc) | Max. Output Power (W) | Typical Efficiency | Typical Power Factor | Model Number |
|---|---|---|---|---|---|---|---|
| 105–1250 | 950–1250 | 1050 | 67–190 | 180 | 93.0% | 0.99 (120Vac) 0.96 (220Vac) |

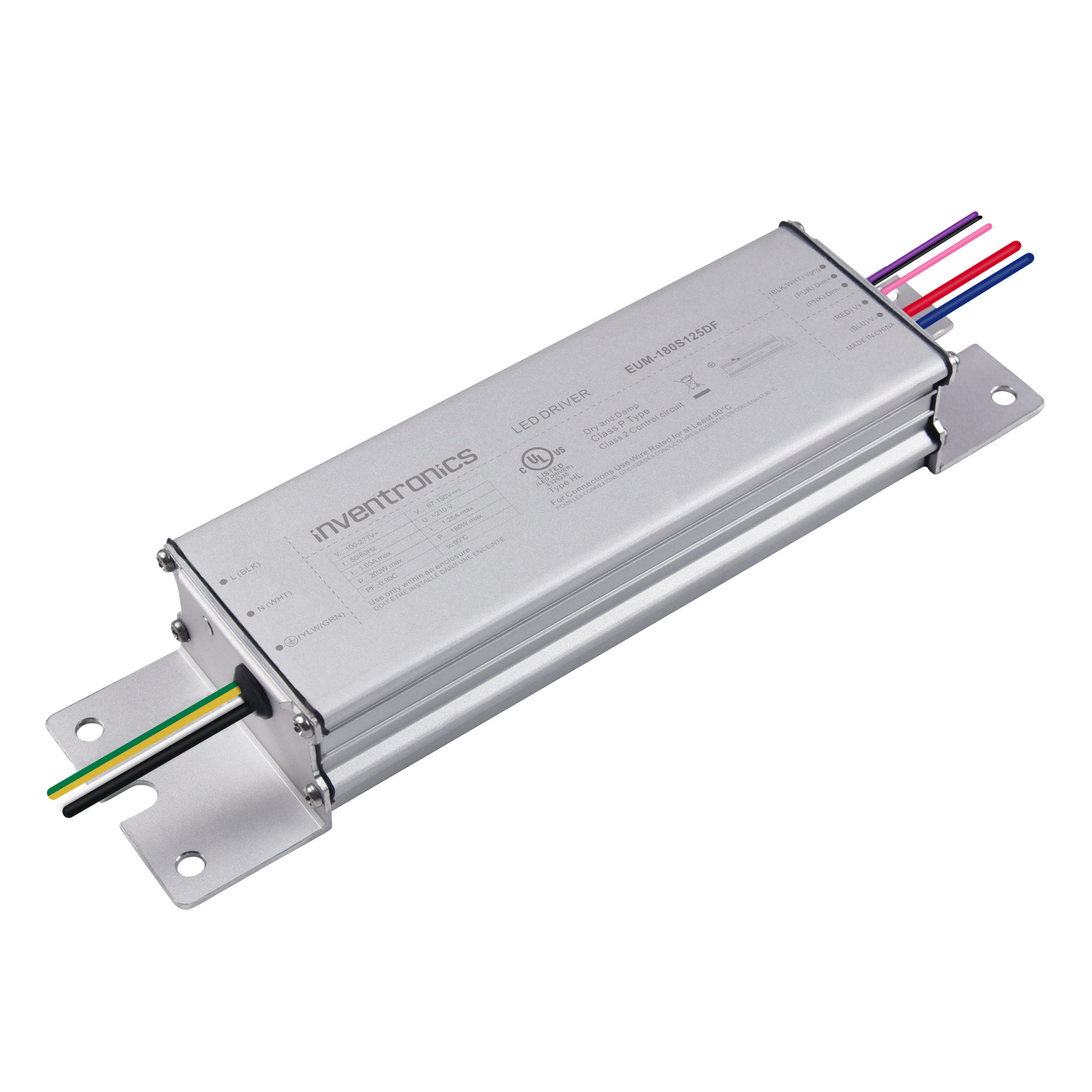

EUM-180S125DF |
|
