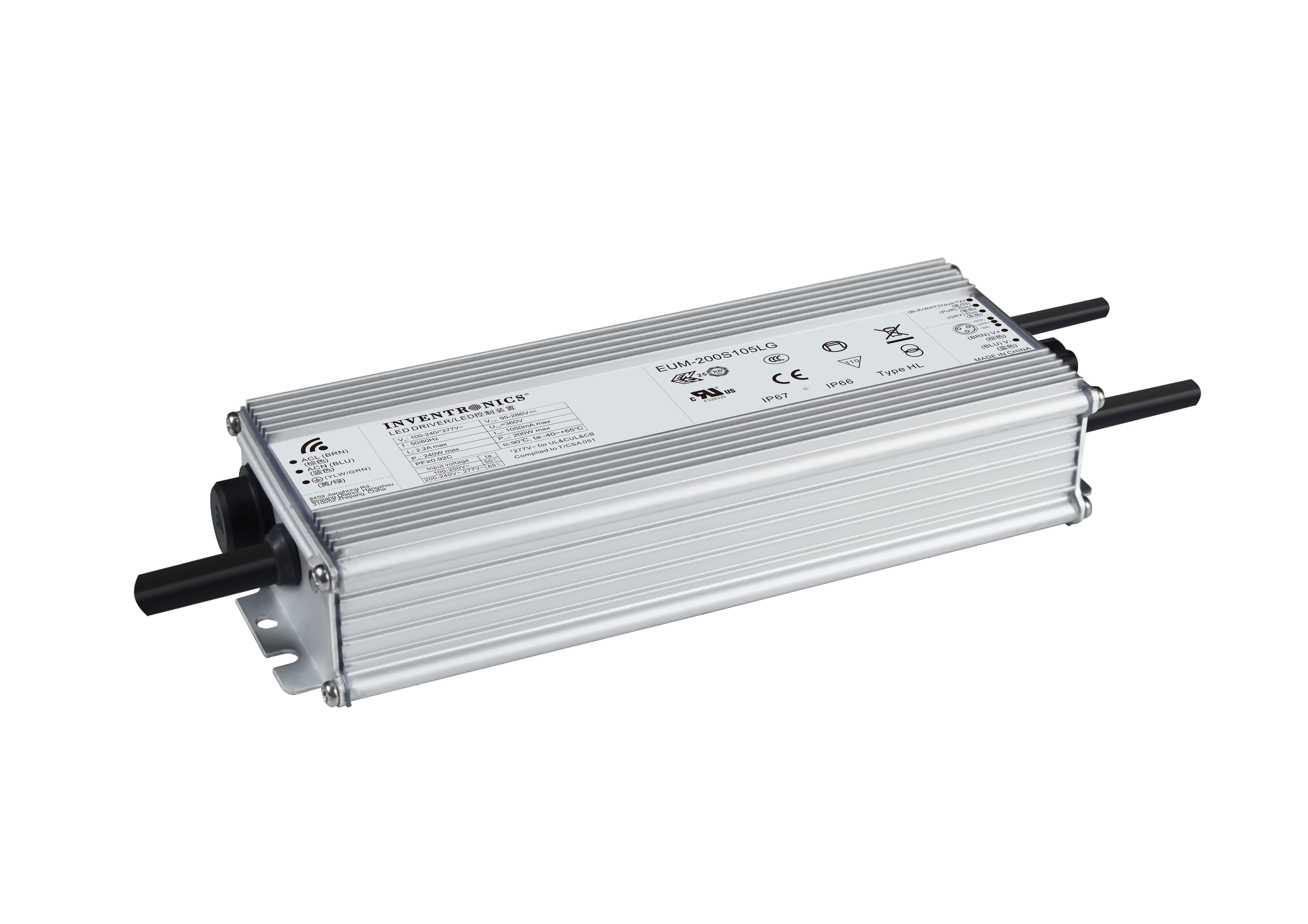

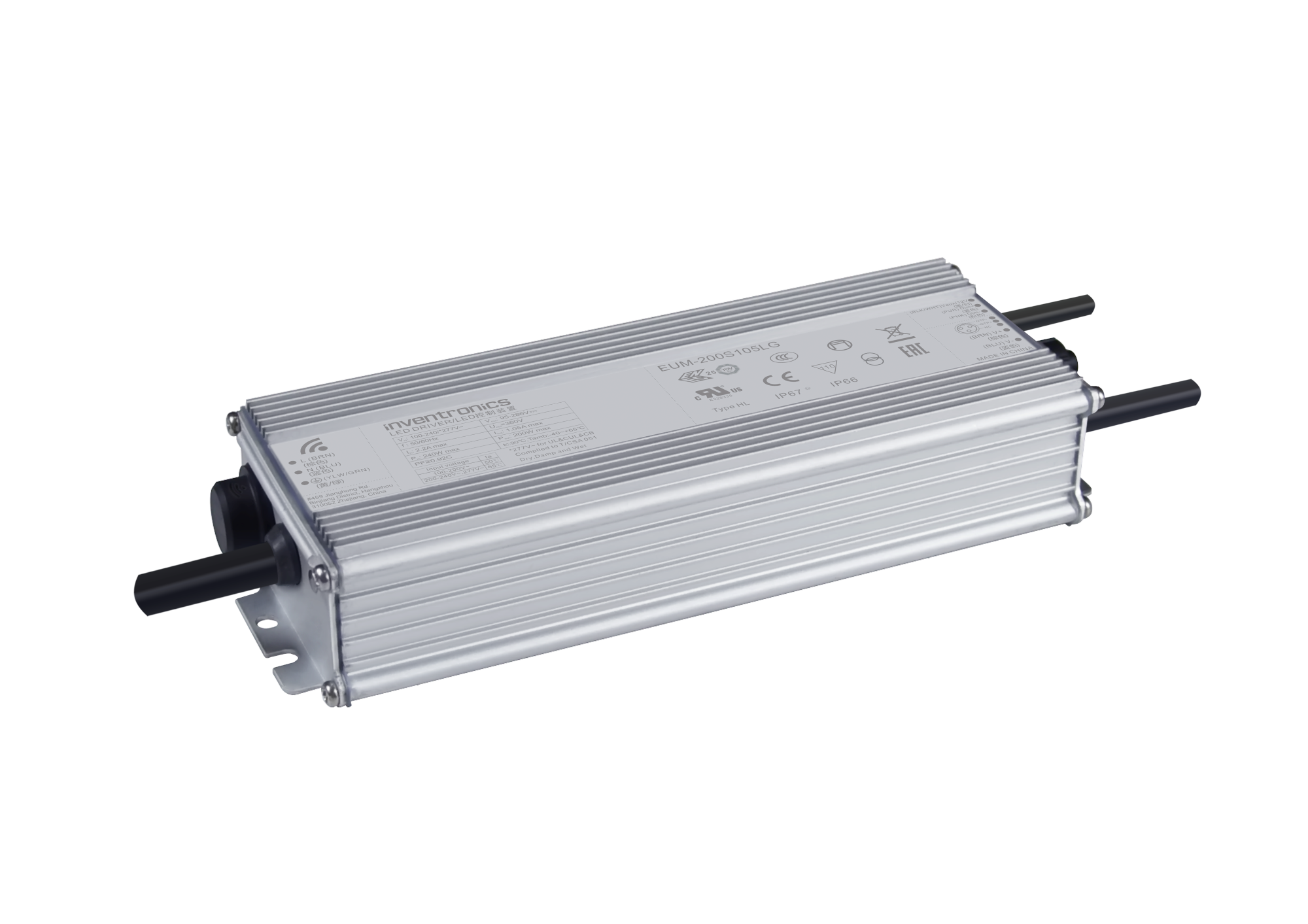

EUM-200 LG with NFC and Power Monitoring
  • Integrated AC Power Monitoring with High Accuracy up to ±1%
  • Inventronics Proprietary Digital Dimming Health Monitoring
    • UART Based Communication Protocol Compliant with T/CSA-051
  • Wireless Programming via Near Field Communication (NFC)
    • Compatible with Zhaga Book 24 Programmers
  • Isolated Dimming Controls:
    • 0-10V, PWM, Multiple Timers
  • Controls-Ready
    • Always-On Auxiliary Power: 12Vdc, 250mA, 3W (Transient Peak Power up to 10W)
    • Dim-to-Off
  • Global Cable Design to Reduce SKUs (with UL)
  • Optimized, More Compact Form Factor
  • High Level of Built-in Surge Protection:
    • 6kV DM, 10kV CM
  • End-of-Life Indicator
  • Thermal Sensing and Protection for LED Module
  • Simplified Design for Easier Hi-Pot Testing
  • Output Lumen Compensation
  • SELV Output Models Available
  • EUM-200SxxxLG Models: Global Cable to Reduce Inventory SKUs
  • EUM-200SxxxLB Models: BIS Certified
  • IP66 and IP67 and UL Dry, Damp, Wet Location
  • TYPE HL, for use in a Class I, Division 2 Hazardous
  • 7 Year Warranty

Life Time

102,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
6.73 x 2.66 x 1.44

Millimeters (L x W x H)
171 x 67.5 x 36.5

Certifications

Full-Power Current RangeDefault Output CurrentInput Voltage RangeOutput Voltage RangeMax. Output PowerModel Number
700 – 1050 mA700 mA90 ~ 305 Vac
127 – 300 Vdc
95 – 286 Vdc200 WEUM-200S105LG
1050 – 1500 mA1050 mA67 – 190 VdcEUM-200S150LG
1800 – 2800 mA2100 mA36 – 111 VdcEUM-200S280LG
3500 – 5600 mA4200 mA18 – 57 VdcEUM-200S560LG
Note:  To order BIS approved models, please use suffix “LB” in place of “LG” (Ex: EUM-200S105LB)
