• Adjust Color Temperature Continuously
  • Adjust Intensity and Color Temperature Separately
  • 60W Max per Channel with Total 60W Load
  • Programmable, Full Power at a Wide Output Current
  • Isolated Dimming Controls:
    • 1-5V, 1-10V, 10V PWM, Multiple Timers
    • 1% Minimum per Channel with Total 10% Dimming
  • Flicker-Free
  • Built-in Surge Protection:
    • 4kV DM, 6kV CM
  • Output Lumen Compensation
  • SELV Output Models Available
  • Type HL, for Use in a Class I, Division 2 Hazardous (Classified) Location
  • IP66 Rated with UL Dry, Damp Location
  • 5 Year Warranty

Life Time

106,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
4.92 x 2.52 x 1.44

Millimeters (L x W x H)
125 x 64 x 36.5

Certifications

Full-Power Current RangeDefault Output CurrentInput Voltage RangeOutput Voltage RangeMax. Output PowerModel Number
700 – 1050 mA700 mA90 ~ 305 Vac
127 – 300 Vdc

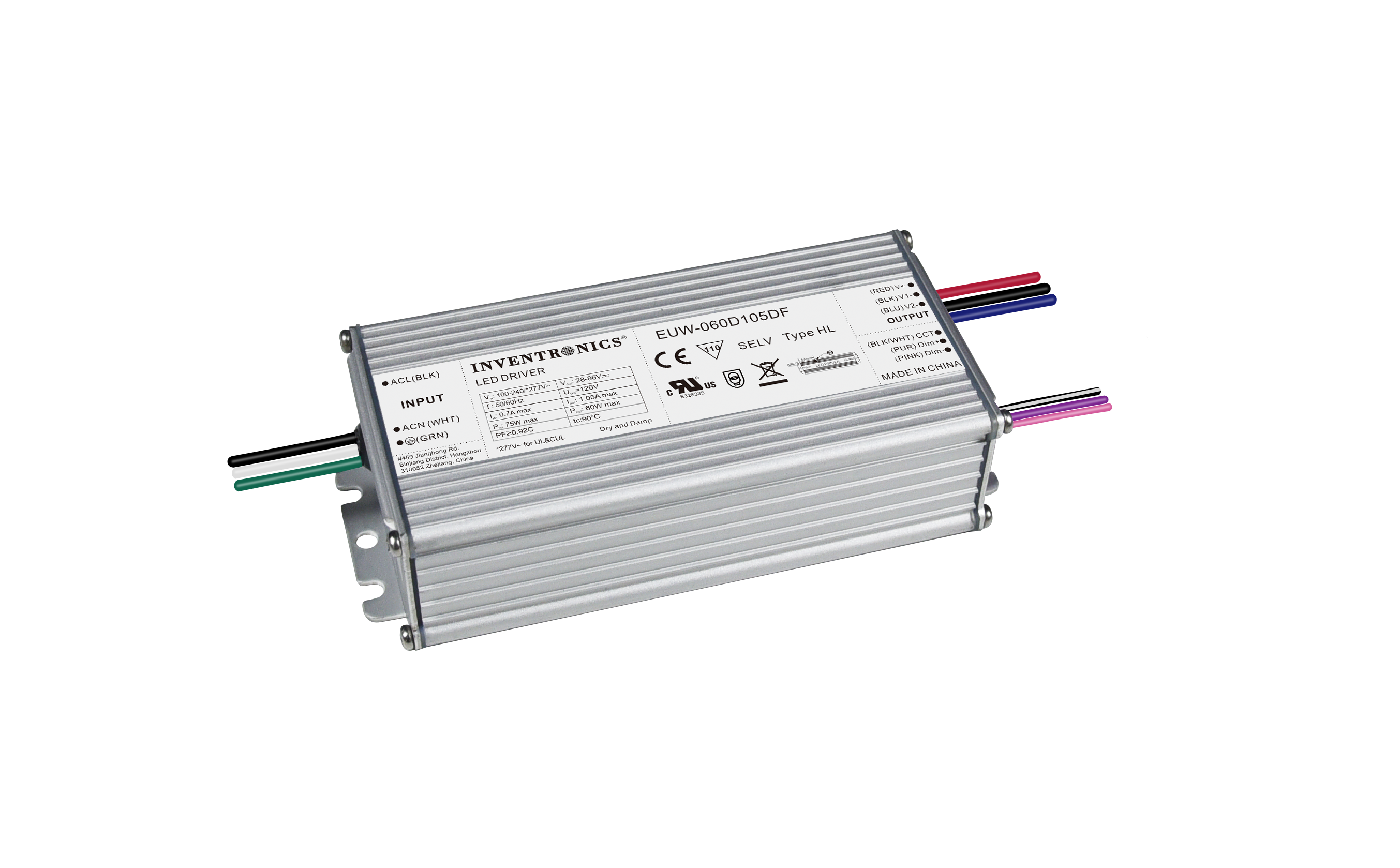

28 – 86 Vdc60 WEUW-060D105DF

File Name
LED Driver Installation Instructions
Programming Interface Device Driver Install First (Updated March 2015)
Design-in Guide for Programming Drivers (Updated September 2018)
