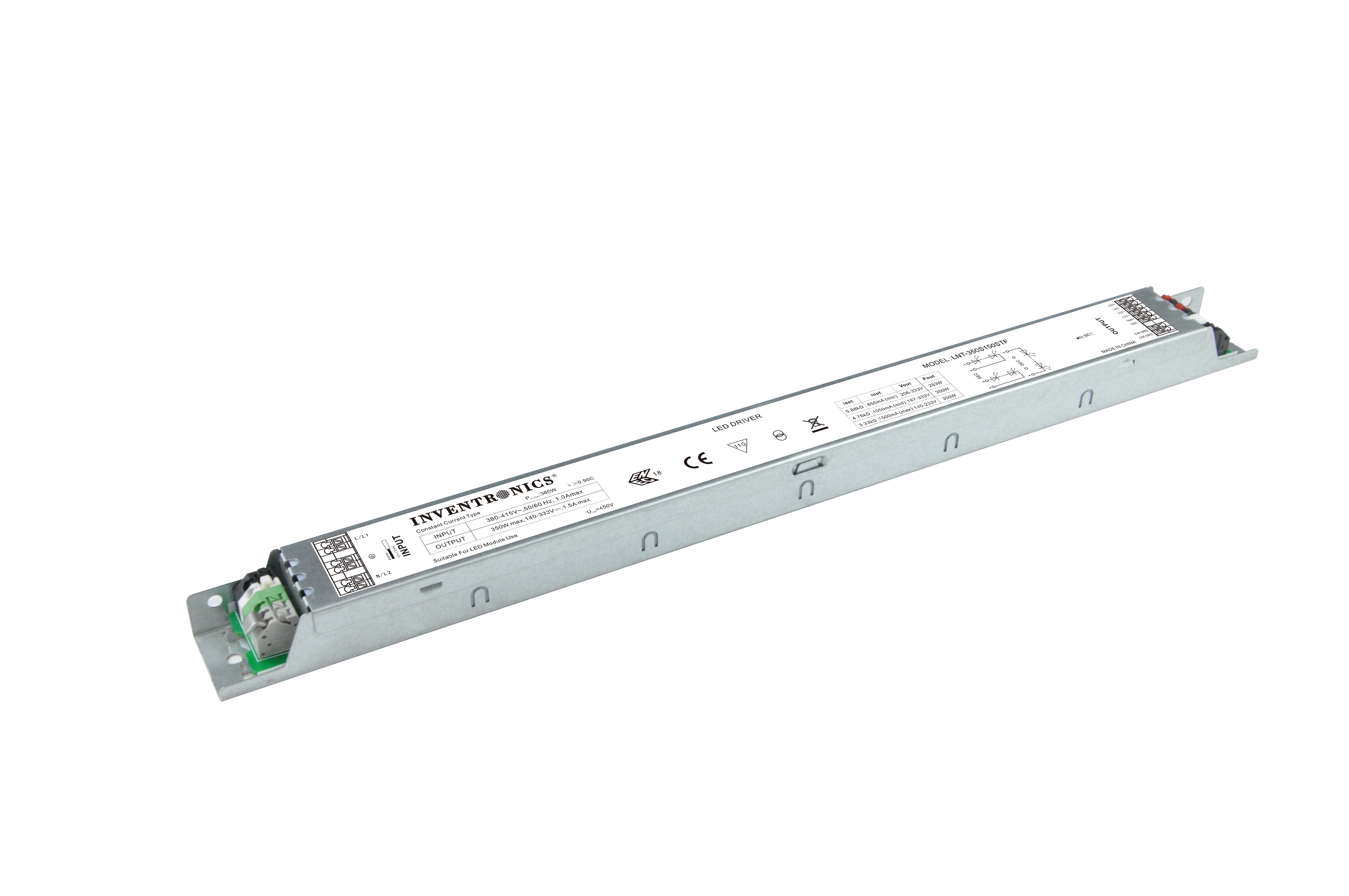

The LNT-350SxxxSTF model is not recommended for new design. It has limited availability until the last buy date of 06/30/2025. We recommend NEL-400SxxxMP as a replacement.
- Non-Isolated Design with Low residual output voltage < 2 kV
- Resistant to Corrosive Gases
- Ultra High Efficiency (Up to 96.5%) Adjustable Output Current (AOC) with External Resistor
- Full Power at Wide Output Current Range (Constant Power)
- Flicker- Free
- Non-dimming Control
- Long Lifetime Over 100,000 Hours at 70°C Case Temperature
- Input Surge Protection: DM 2 kV, CM 4 kV
- Suitable for Luminaires with Protection Class I
- 5 Year Warranty
Life Time
123,000 hours @ Case Temperature 70°C
Dimensions
Inches (L x W x H)
16.74 x 1.58 x 1.18
Millimeters (L x W x H)
425 x 40 x 30
Certifications
| Adjustable Output Current Range |
Full-Power Current Range |
Default Output Current |
Input Voltage Range |
Output Voltage Range | Max. Output Power | Typical Efficiency |
Typical Power Factor |
Model Number |
|---|---|---|---|---|---|---|---|---|
| 850 – 1500 mA | 1050-1500mA | <850mA | 342~457Vac | 140 – 333Vdc | 350W | 96.5% | 0.98 | LNT-350S150STF |
|
File Name
|
|---|
|
LED Driver Installation Instructions (Updated March 2015)
|
|
Programming Interface Device Driver Install First (Updated March 2015)
|
|
Programming Interface Installation Instructions (Updated April 2015)
|
|
Design In Guide for Programmable Drivers (Updated September 2018)
|
|
Programming Interface Operating Instructions (Updated January 2016)
|
|
Constant Power Programmer Manual Instructions (Updated April 2018)
|
