- DAlI-2 D4i Certified
- Integrated 16Vdc Bus Power Supply Based on DALI-2
- Integrated Power Monitoring with High Accuracy ± 1%
- Wireless Programming with NFC
- Full Power at a Wide Output Current Range
- Dimming Controls:
- DALI-2, D4i AC DIm, Multiple Timers
- Controls-Ready:
- Always-On Auxiliary Power 24Vdc, 125mA, 3W (Transient Peak Power up to 10W)
- Dim-to-Off with Low Standby Power
- High Level Surge Protection:
- 6kV DM, 10kV CM
- End-of-Life Indicator
- Thermal Sensing and Protection for LED module
- Output Lumen Compensation
- Suitable for Luminaires with Protection Class I and II
- Built-in Use for Outdoor Applications
- Complies with Zhaga Interface Specification Book 13
- Independent Use for Indoor Applications with Optional END-CAP02
- IP20
- 8 Year Warranty
Life Time
110,000 hours @ Case Temperature 75°C
Dimensions
Inches (L x W x H)
5.24 x 3.03 x 1.30
Millimeters (L x W x H)
133 x 77 x 33
Certifications
| Full-Power Current Range | Default Output Current | Input Voltage Range | Output Voltage Range | Max. Output Power | Model Number |
|---|---|---|---|---|---|
| 300 – 450 mA | 450 mA | 176 ~ 305 Vac 171 ~ 275 Vdc |

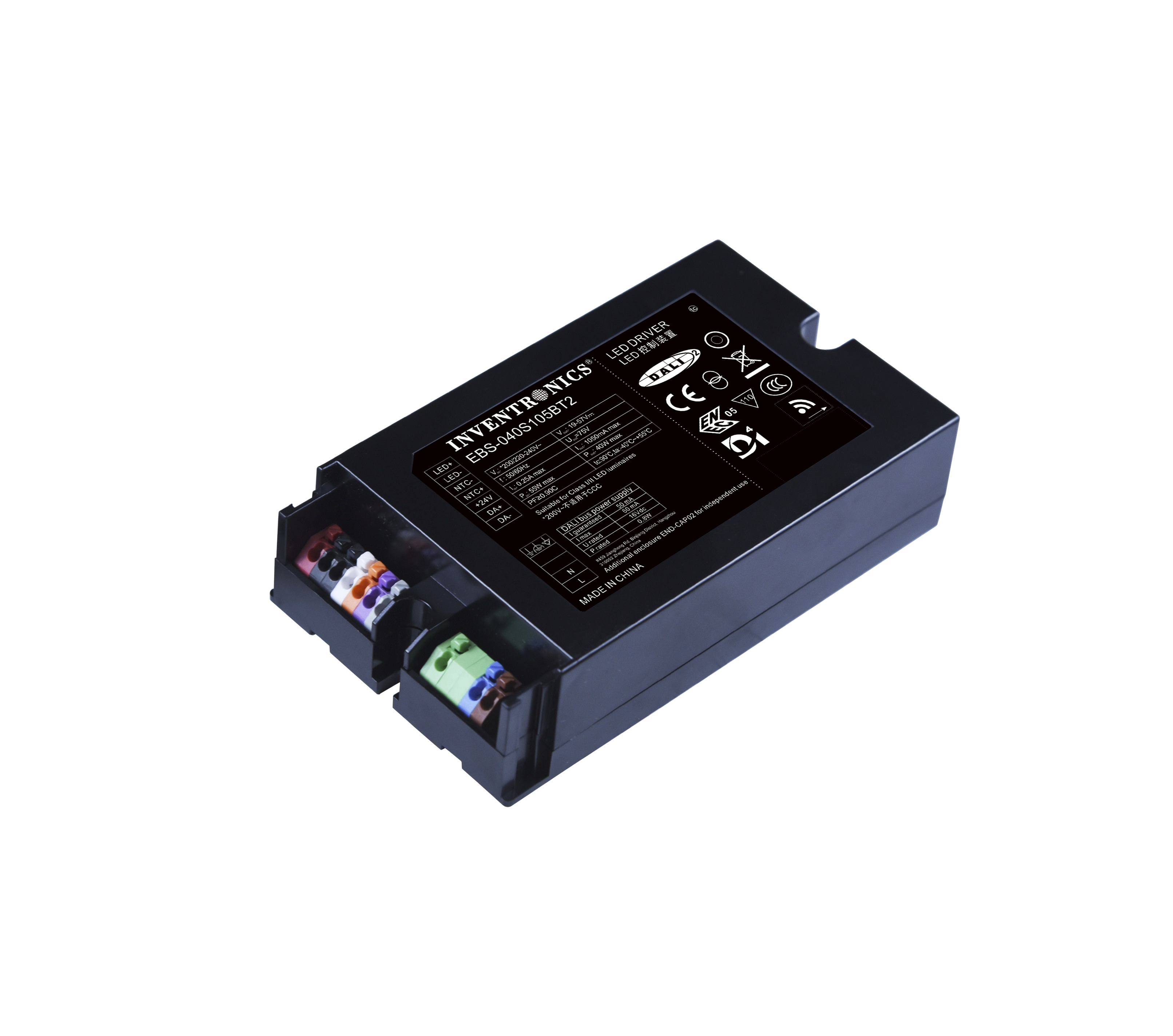

44 – 133 Vdc | 40 W | EBS-040S045BT2 |
| 450 – 700 mA | 700 mA | 28 – 89 Vdc | EBS-040S070BT2 | ||
| 700 – 1050 mA | 1050 mA | 19 – 57 Vdc | EBS-040S105BT2 |
|
File Name
|
|---|
|
LED Driver Installation Guidelines (Updated September 2018)
|
|
Inventronics DALI Driver Programmer Manual Instruction (Updated November 2016)
|
|
Programming Interface for DALI-Program (Updated May 2015)
|
|
Programming Interface Device Driver Install First (Updated March 2015)
|
|
Design-In Guide for Programmable Drivers (Updated September 2018)
|
