• Compact metal case with excellent thermal performance
  • Full power at wide output current range (constant power)
  • Adjustable output current (AOC) with T4T (Tuner4TRONIC)
  • Isolated 1(0)-5V / 1(0)-10V / PWM / Resistor / AstroDIM (Timer) dimmable
  • Dim-to-Off with standby power ≤ 0.5 W
  • Adjustable dimming curve
  • Always-on auxiliary power: 12Vdc, 100mA on specific models
  • End-of-life indicator
  • Override dimming
  • Constant lumen
  • Input surge protection: DM 6kV, CM 10kV
  • All-around protection: OTP, OVP, SCP
  • 5 Year Warranty

Life Time

117,000 hours @ Case Temperature 70°C

Dimensions

Inches (L x W x H)
6.34 x 2.36 x 1.31

Millimeters (L x W x H)
161 x 60 x 33.4

Certifications

Adjustable Output Current Range (mA) Full Power Current Range (mA) Default Output Current (mA) Nominal Output Voltage Range (Vdc) Maximum Output Power (W) Typical Efficiency Power Factor λ Product Name
120Vac 230Vac

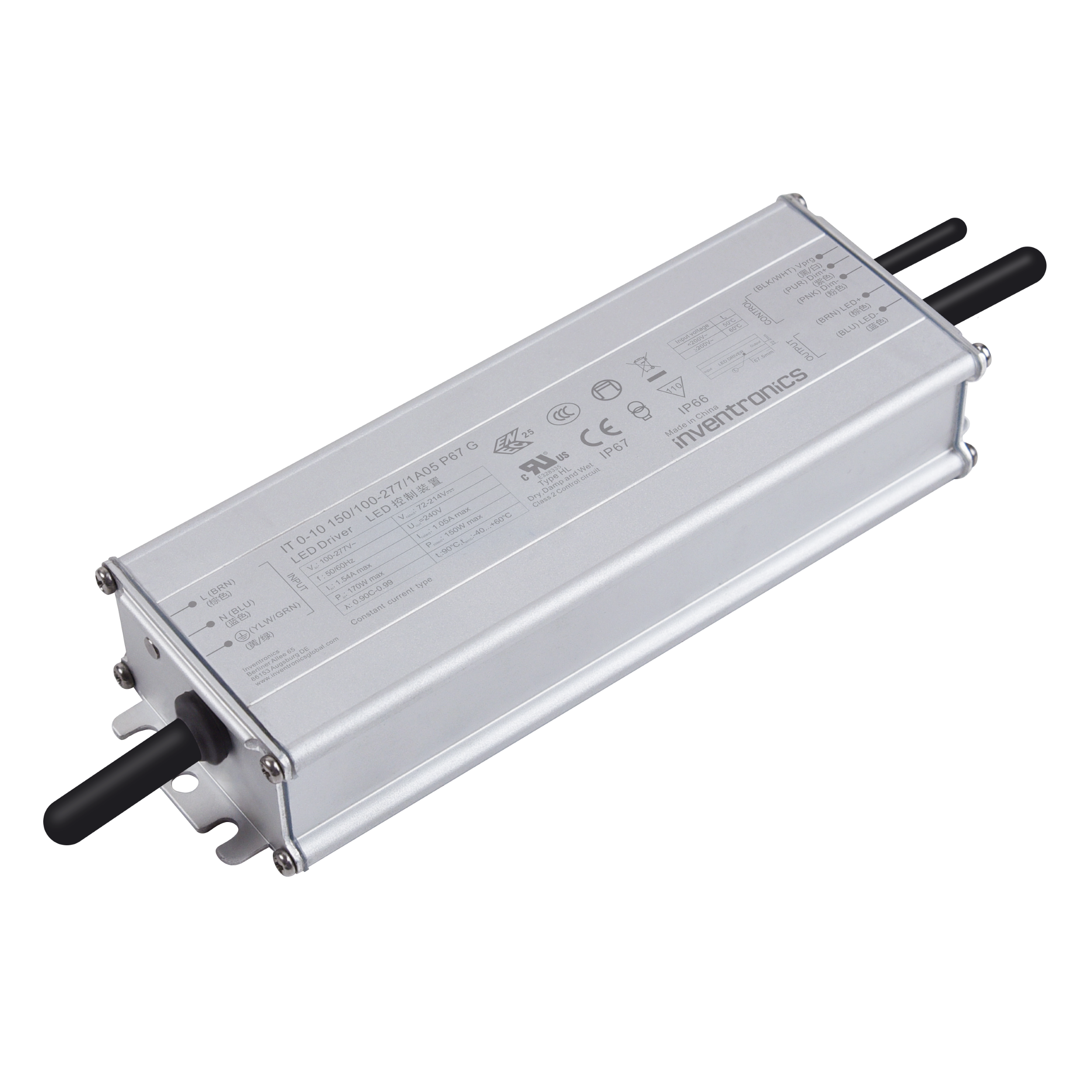

70–1050 700–1050 700 72–214 150 94.0% 0.99 0.96 IT 0-10 150/100-277/1A05 P67 y
268–4200 2680–4200 3150 18–56 150 92.5% 0.99 0.96 IT 0-10 150/100-277/4A2 P67 y
